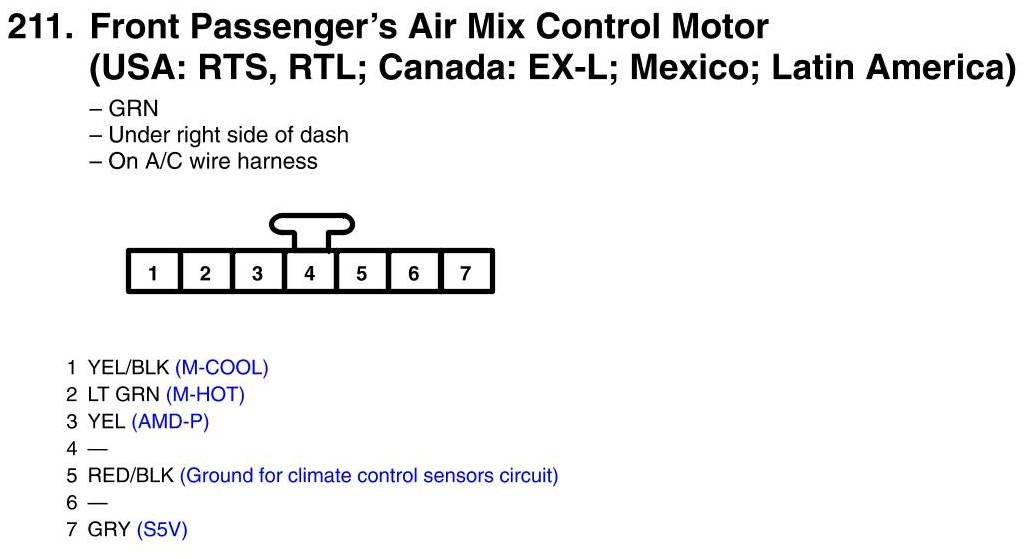

Front Passenger's Air Mix Control Motor Connector View (USA: RTS, RTL; Canada: EX-L; Mexico; Latin America)
Front Passenger's Air Mix Control Motor Connector View (USA: RTS, RTL; Canada: EX-L; Mexico; Latin America)
