Honda Truck
>>
2010
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

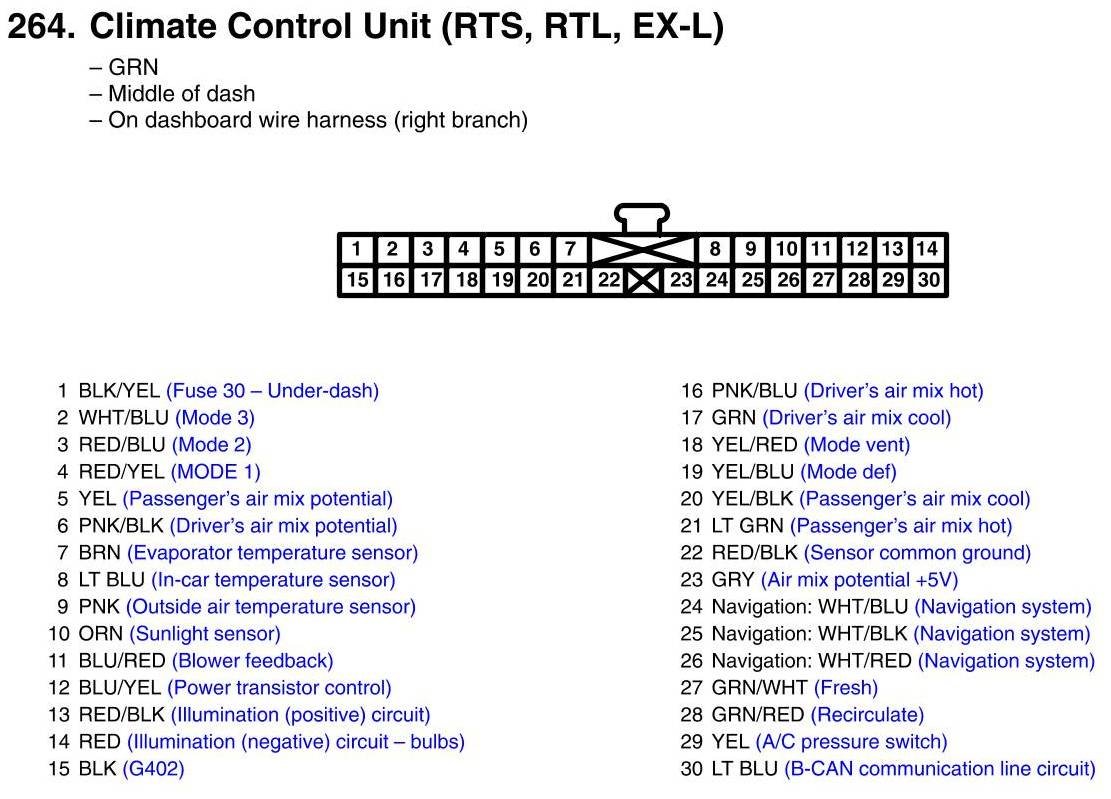

Climate Control Unit Connector View (USA: RTS, RTL; Canada: EX-L; Mexico; Latin America)
Climate Control Unit Connector View (USA: RTS, RTL; Canada: EX-L; Mexico; Latin America)
