Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fog/Driving Lamp
>>
Fog/Driving Lamp Switch
>>

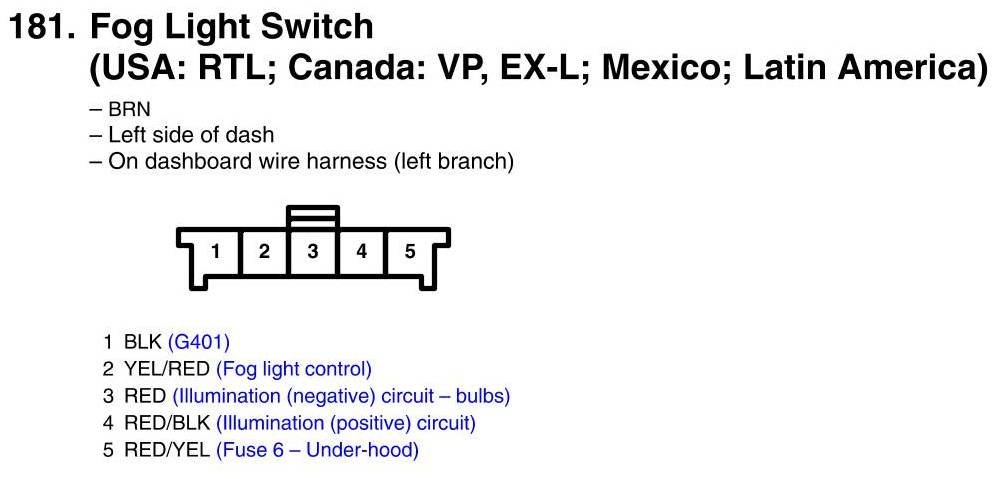

Fog Light Switch Connector View (USA: RTL; Canada: VP, EX-L; Mexico; Latin America)
Fog Light Switch Connector View (USA: RTL; Canada: VP, EX-L; Mexico; Latin America)
