Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

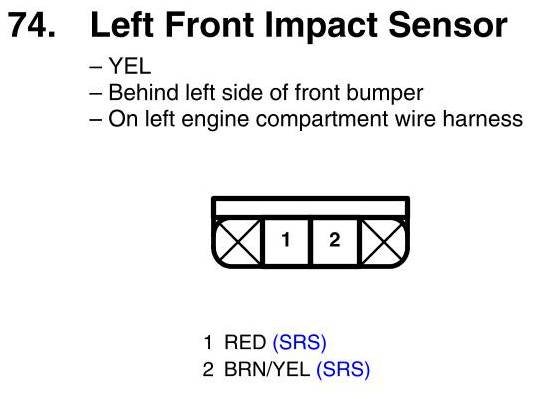

Left Front Impact Sensor Connector View
Left Front Impact Sensor Connector View
