Driver's Door Subharness

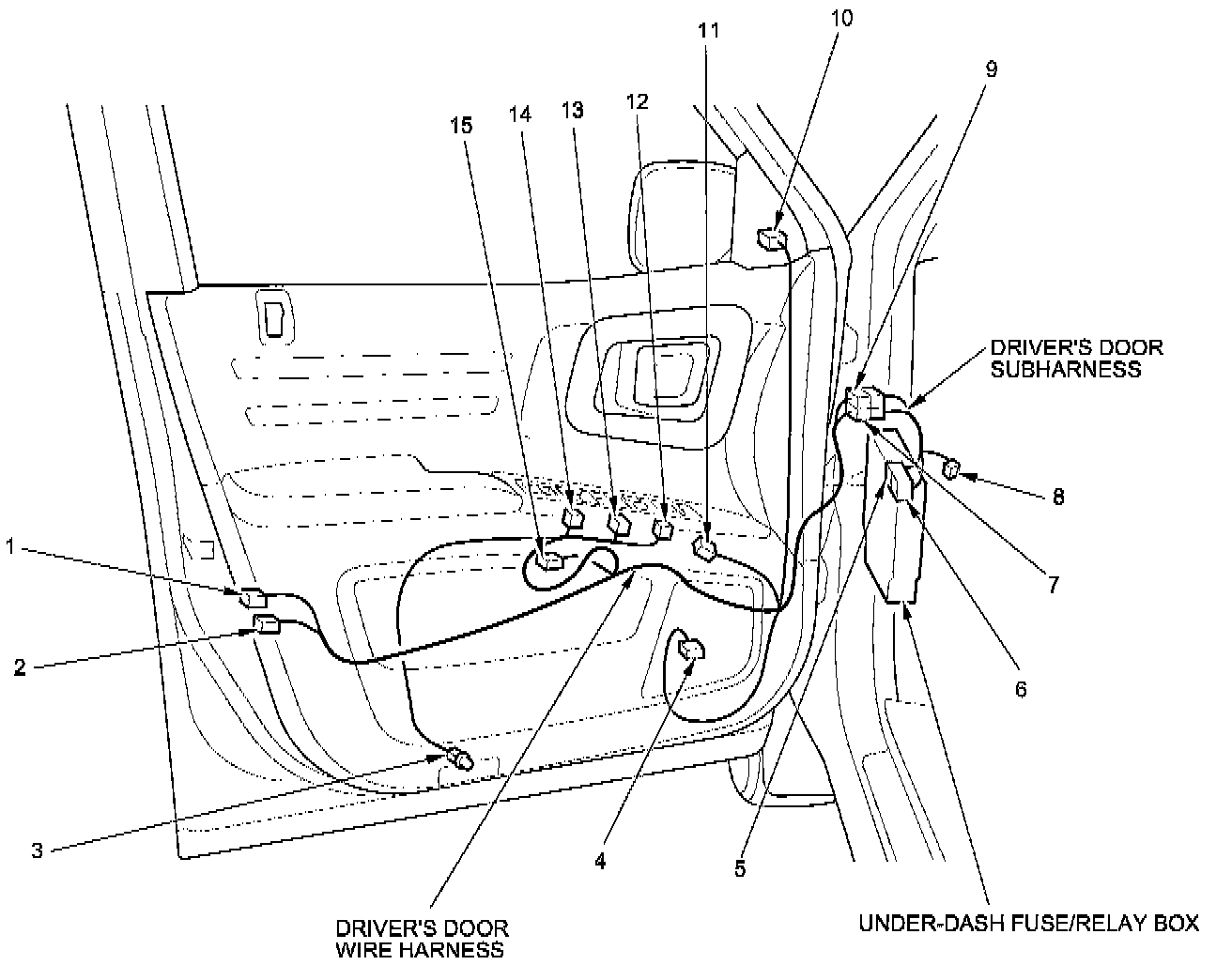

Driver's Door Subharness

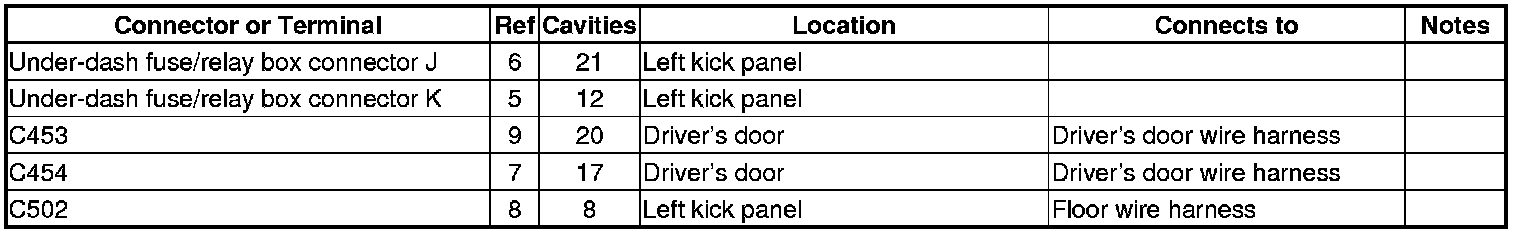

Connector and Harness Locations
Driver's Door Subharness
