Connector And Harness Locations
>>
Wire Harness
>>
Driver's Seat Wire Harness (RTS, RTL, And EX-L Models)
Driver's Seat Wire Harness (RTS, RTL, And EX-L Models)
Connector and Harness Locations

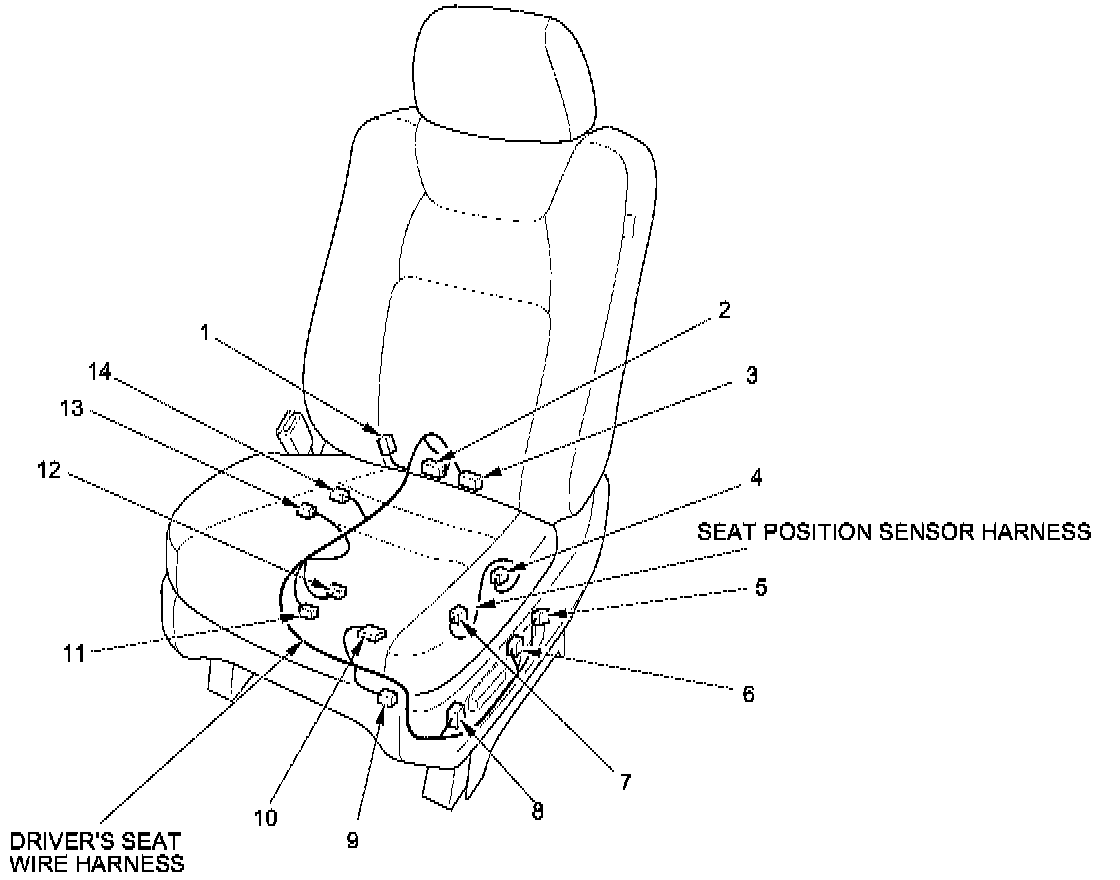

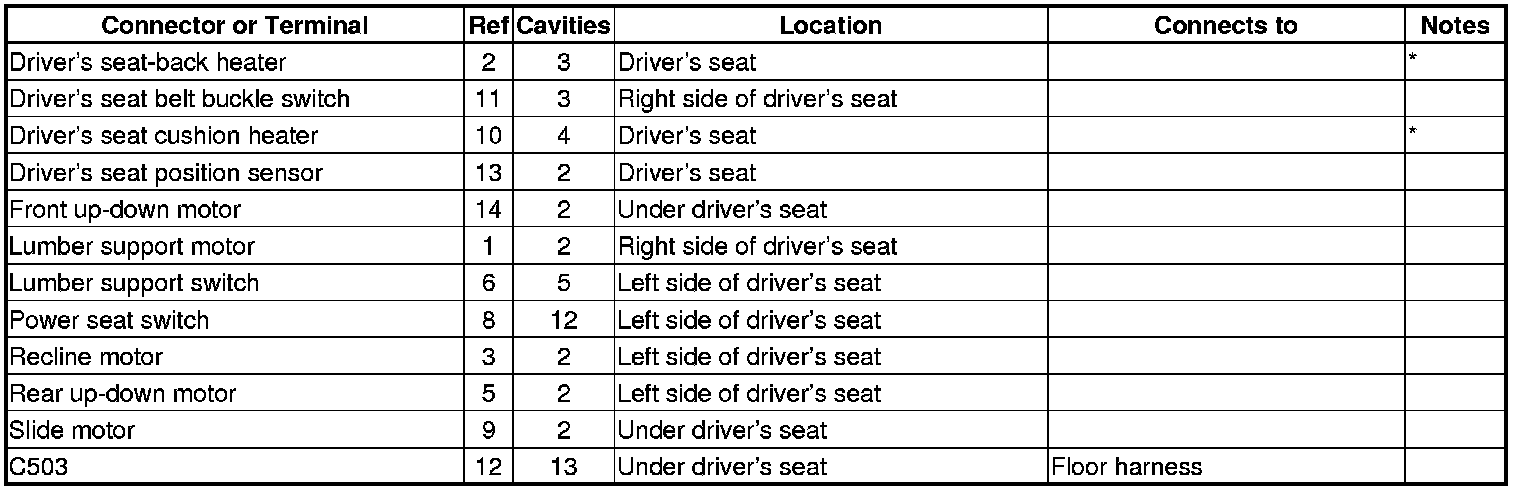

Driver's Seat Wire Harness (RTS, RTL, and EX-L models)
