Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

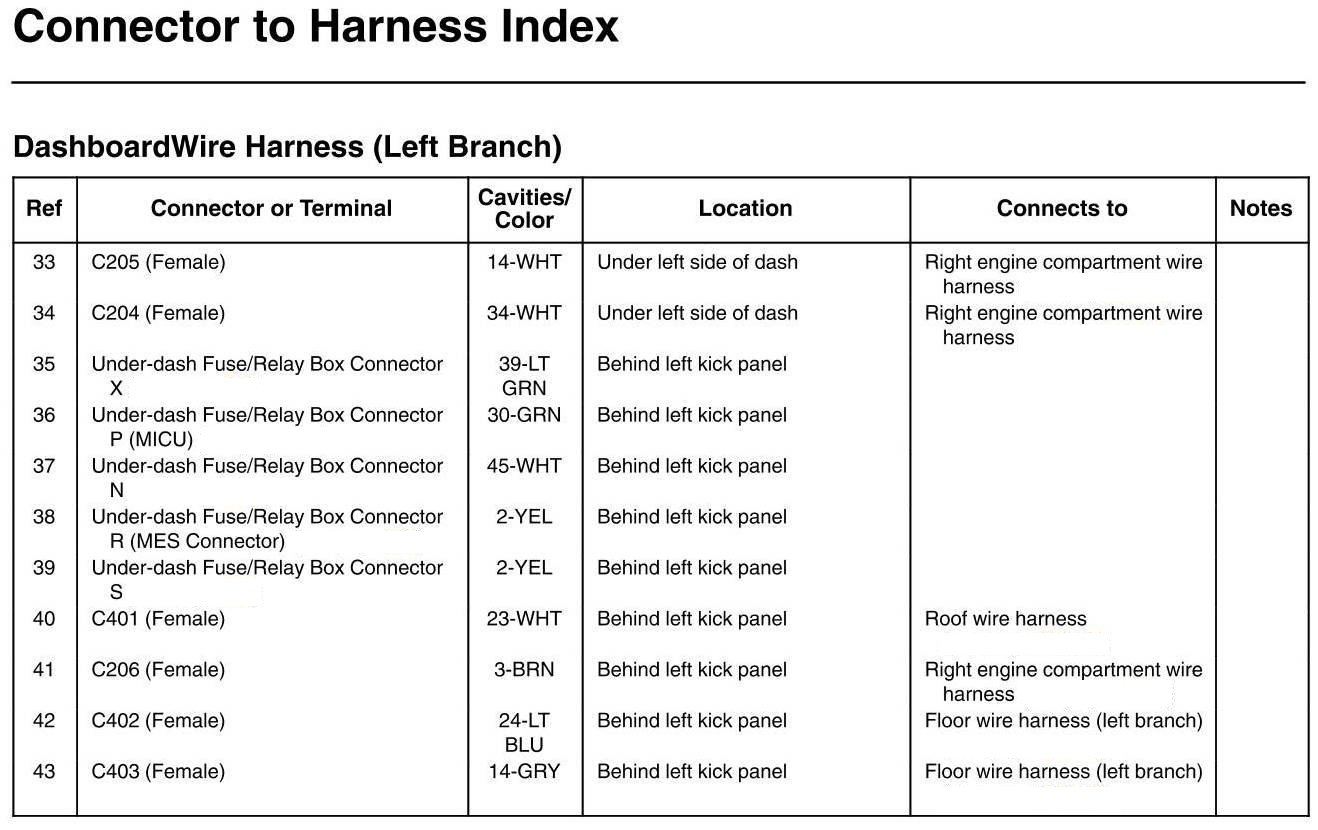

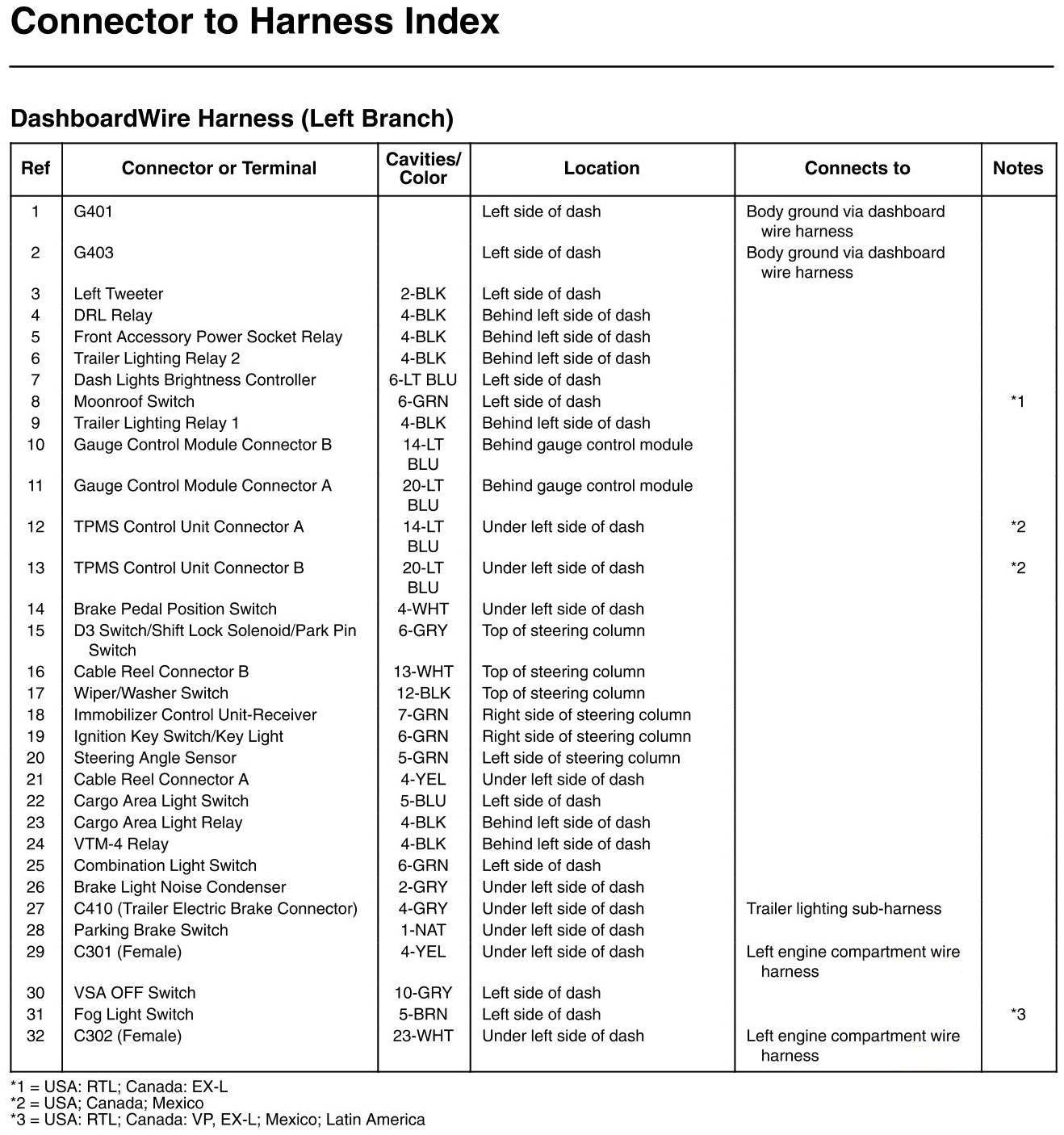

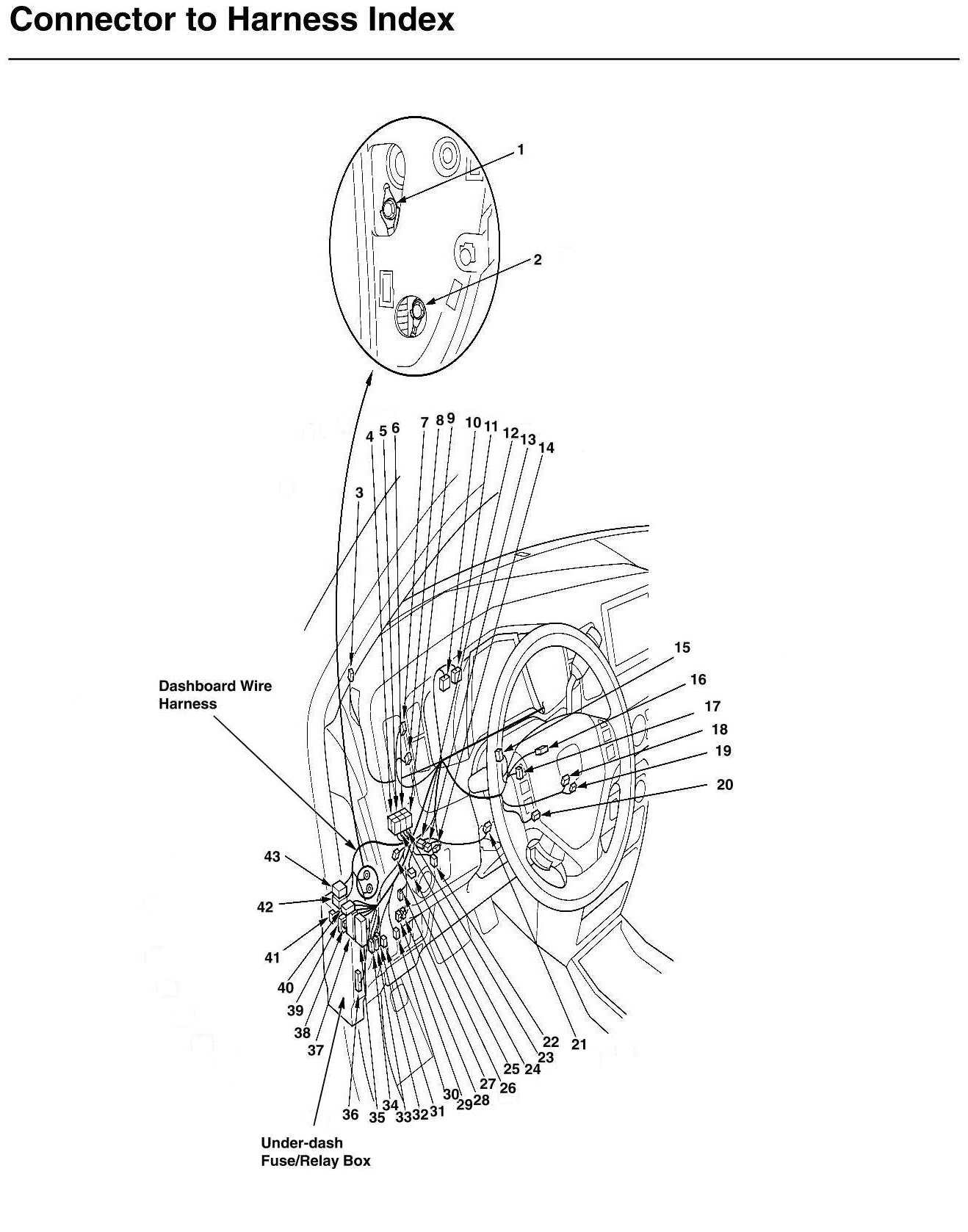

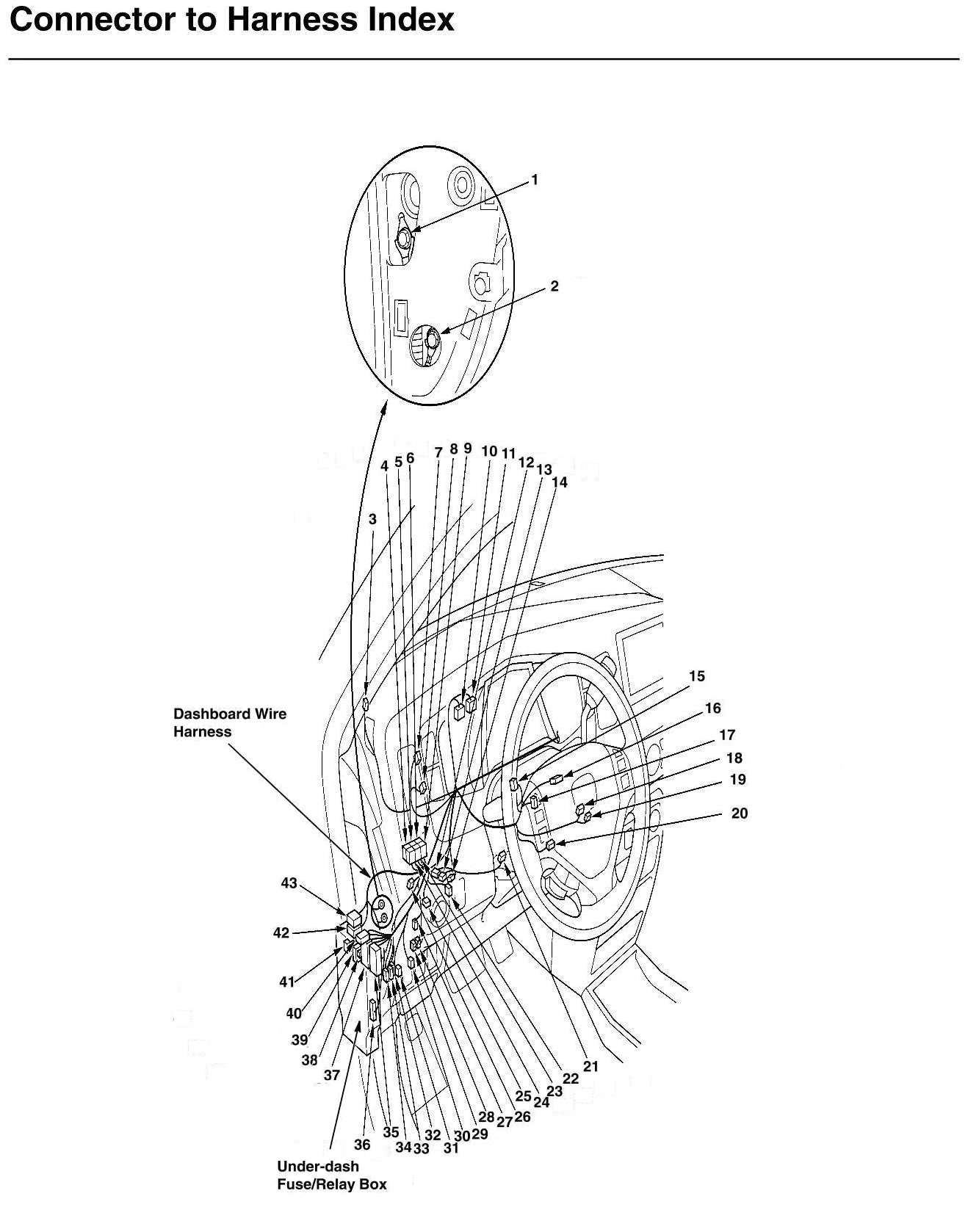

Dashboard Wire Harness (Left Branch) Connector And Harness Locations
Dashboard Wire Harness (Left Branch) Connector And Harness Locations
