Honda Truck
>>
2010
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

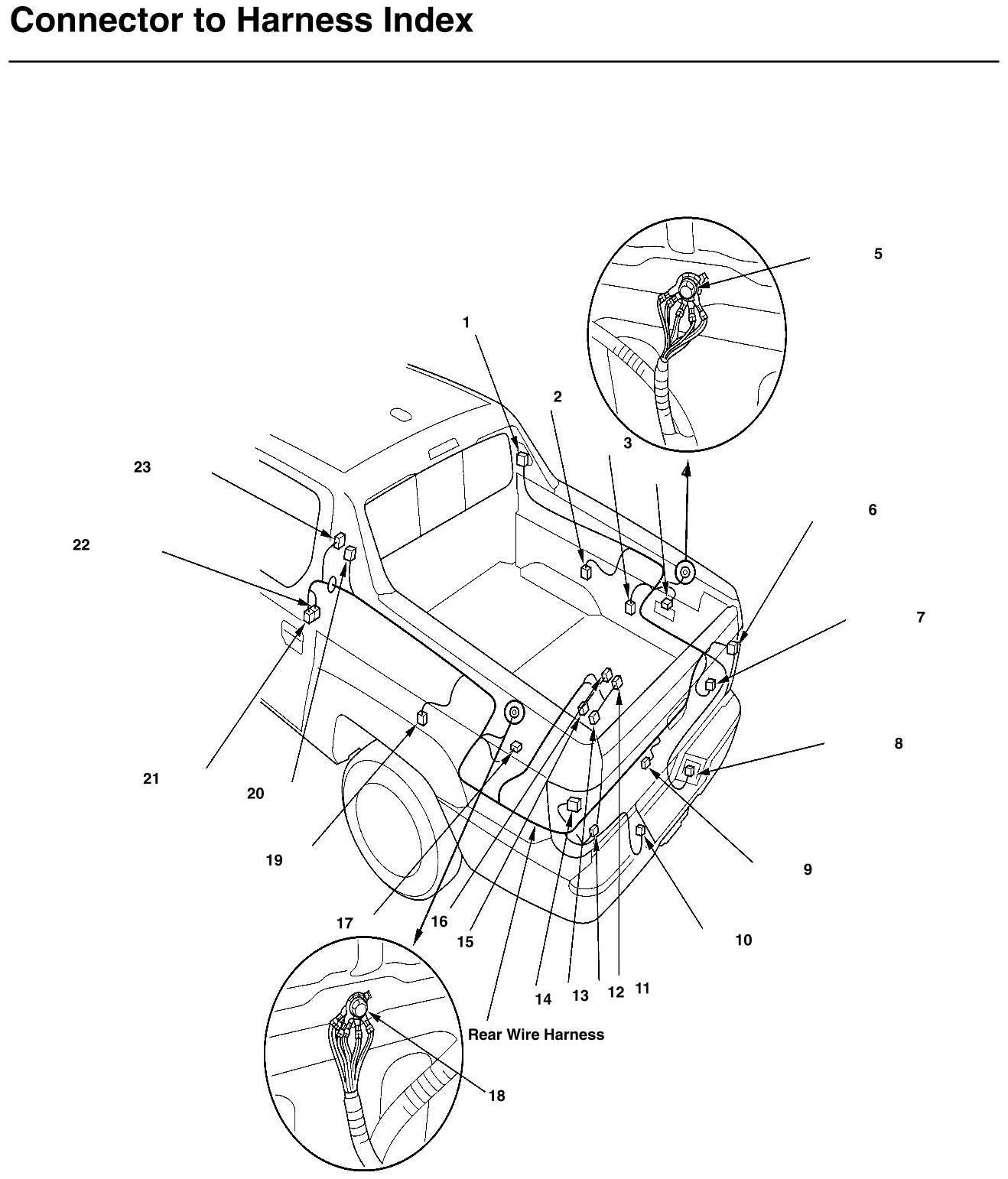

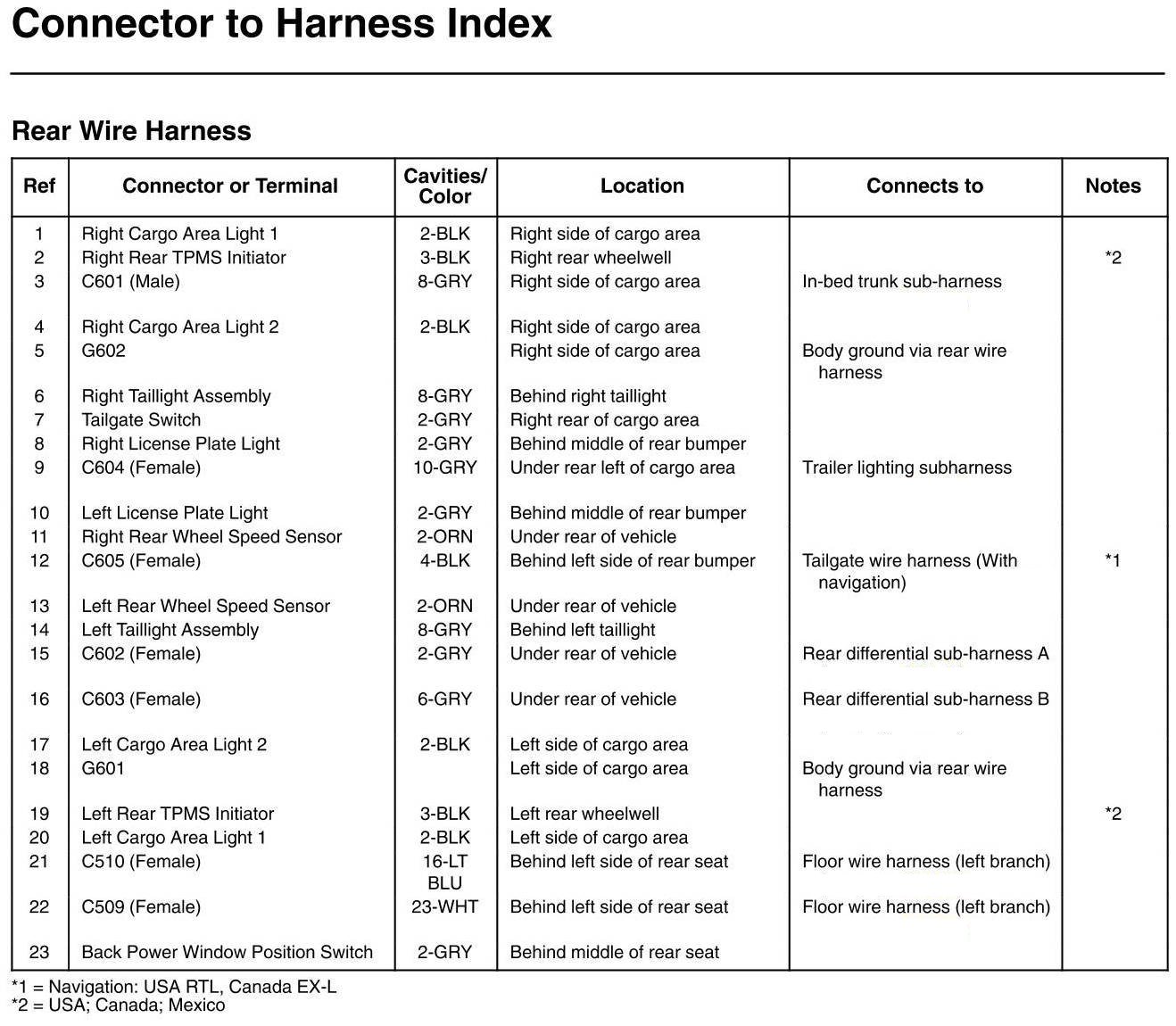

Rear Wire Harness Connector And Harness Locations
Rear Wire Harness Connector And Harness Locations
