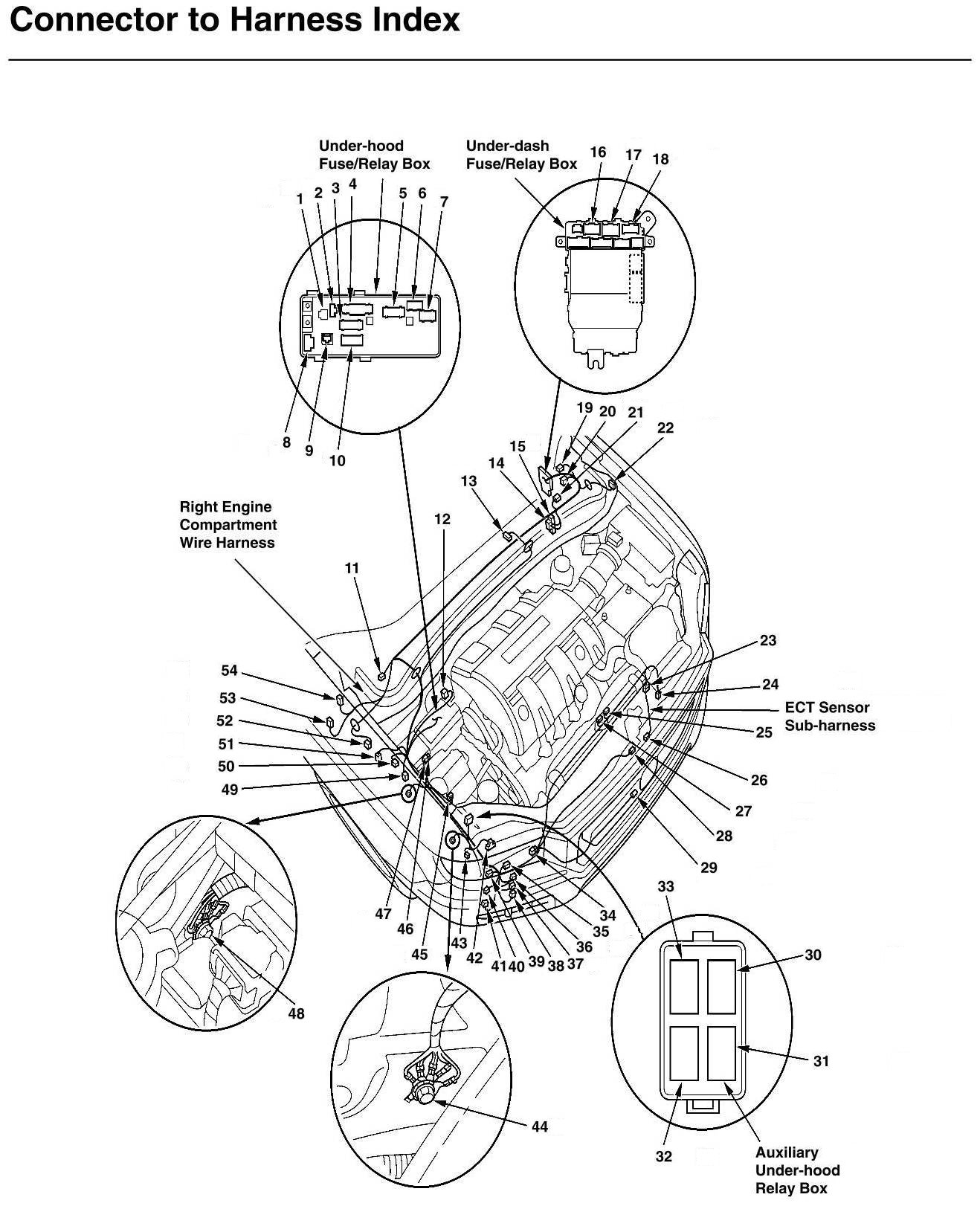

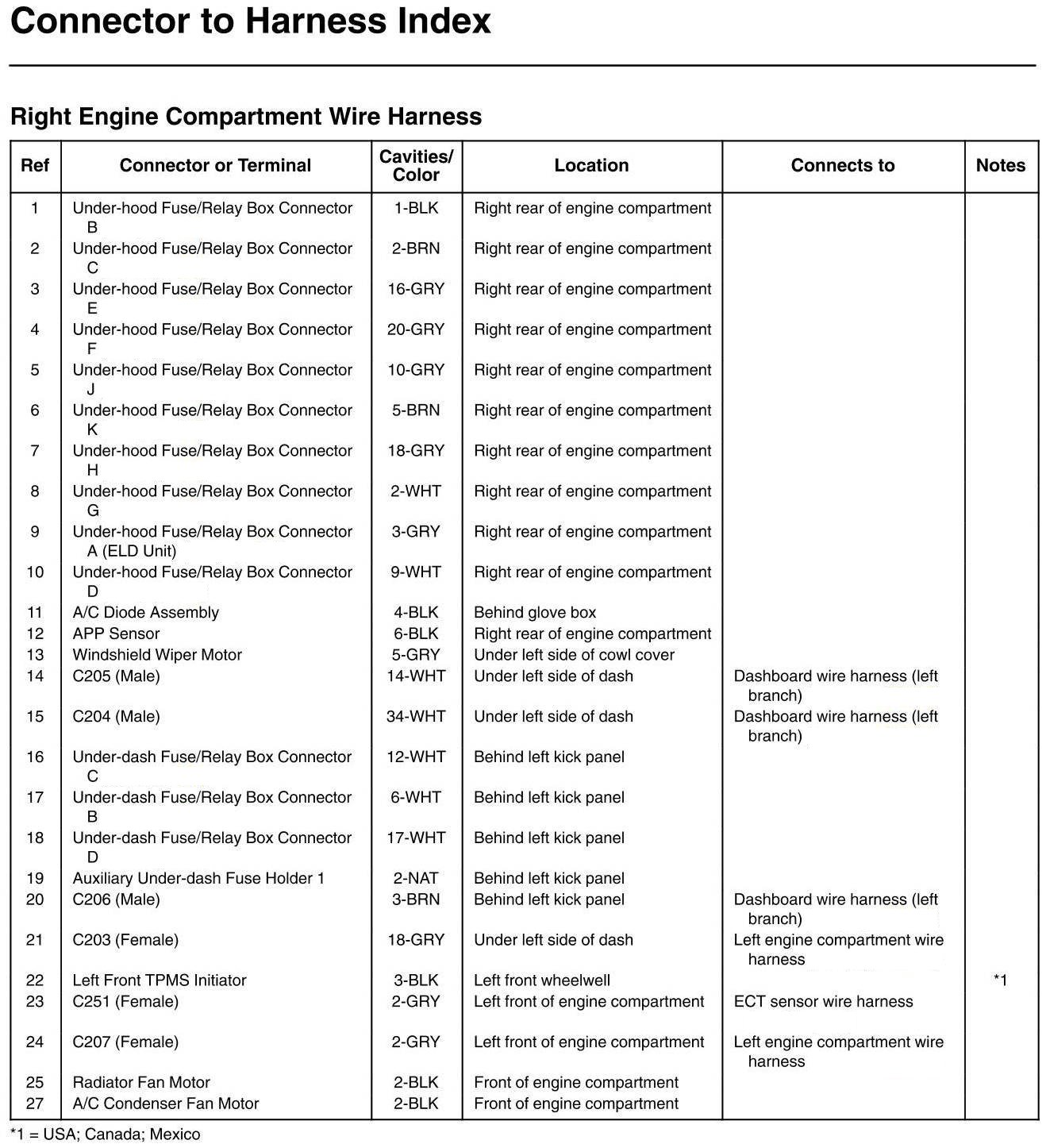

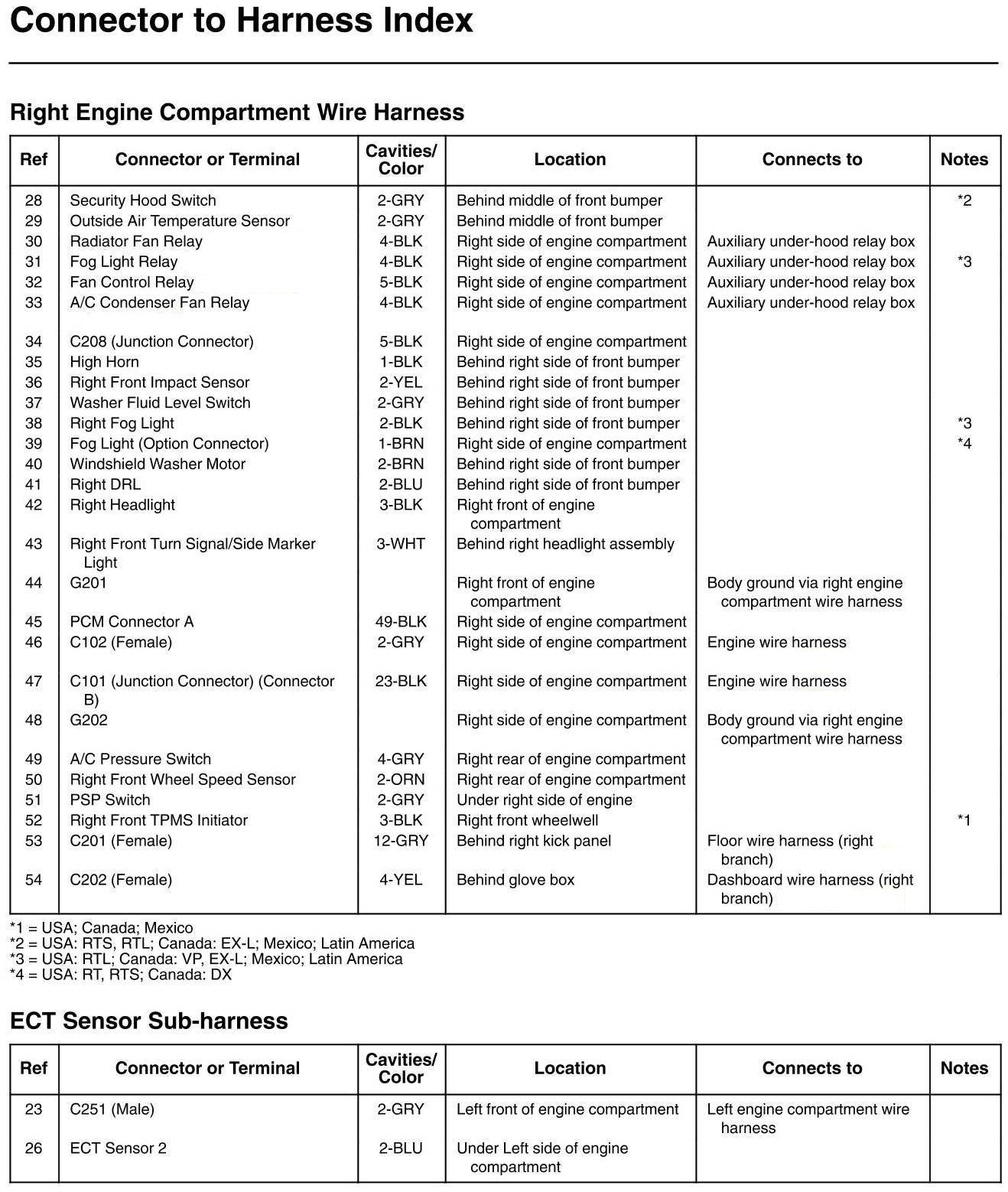

Right Engine Compartment Wire Harness and ECT Sensor Sub-harness Connector and Harness Locations
Right Engine Compartment Wire Harness and ECT Sensor Sub-harness Connector and Harness Locations
