Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

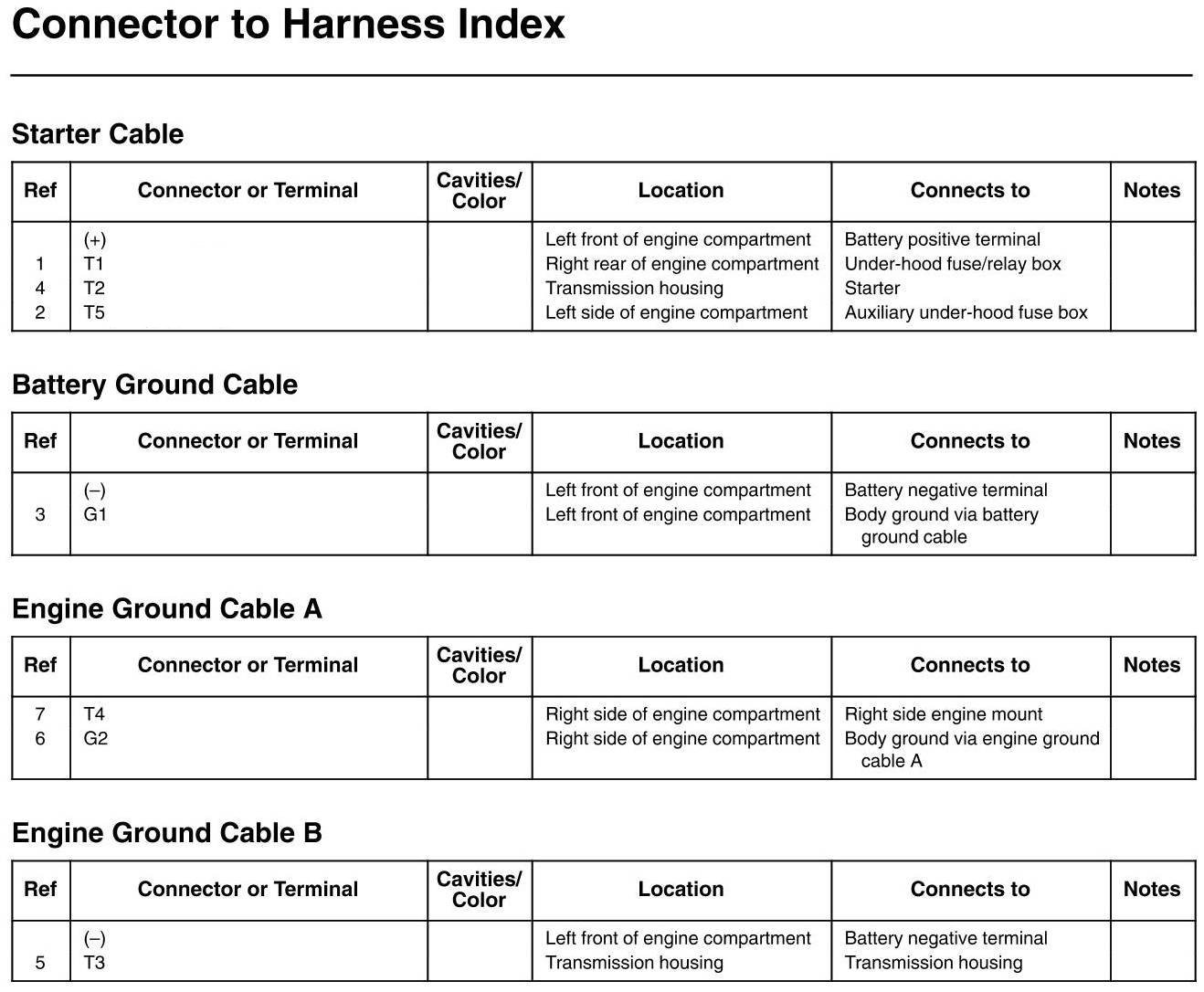

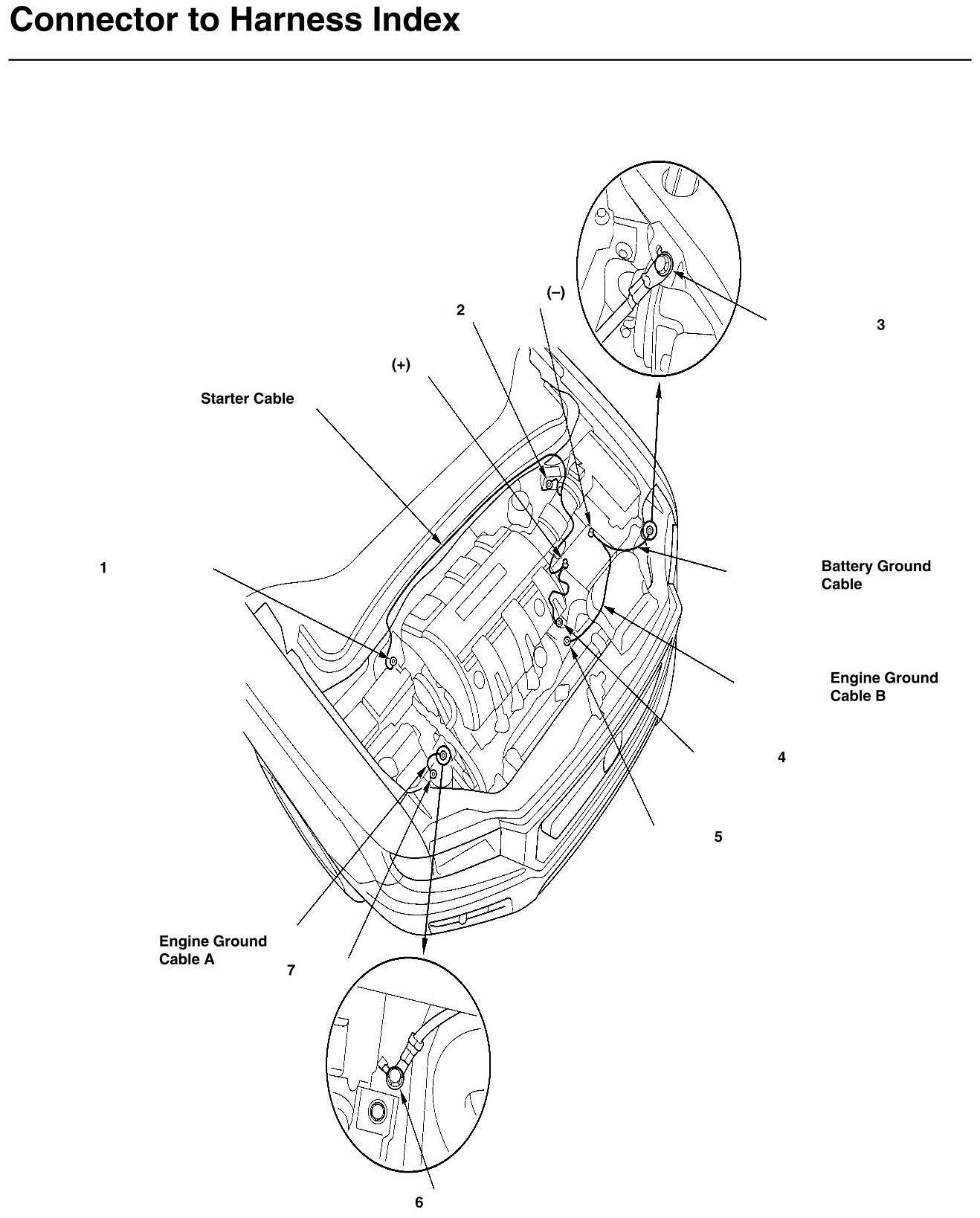

Starter Cable, Battery Ground Cable, Engine Ground Cable A, and Engine Ground Cable B Connector and Harness Locations
Starter Cable, Battery Ground Cable, Engine Ground Cable A, and Engine Ground Cable B Connector and Harness Locations
