Drive Belt Auto-Tensioner Replacement




Drive Belt Auto-Tensioner Replacement

1. Remove the drive belt Service and Repair.

2. Remove the front splash shield Front Splash Shield Replacement.

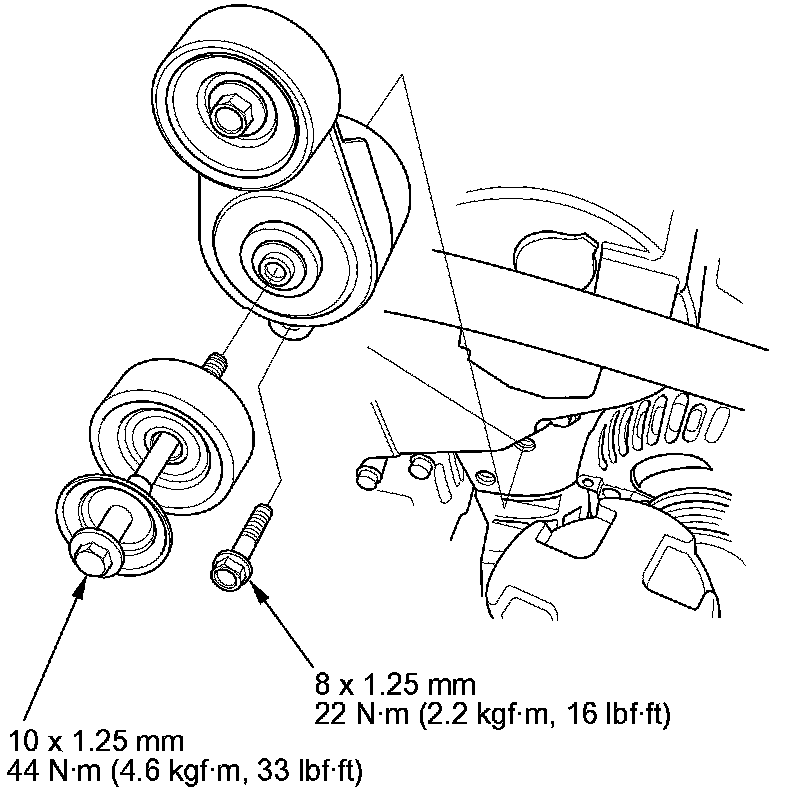

3. Remove the auto-tensioner.






4. Install the auto-tensioner in the reverse order of removal.
