Passenger's Air Mix Control Motor Replacement (With Climate Control)

Passenger's Air Mix Control Motor Replacement

1. Open the glove box. Remove the damper and the glove box stop on each side, then let the glove box hang down Glove Box Removal/Installation.

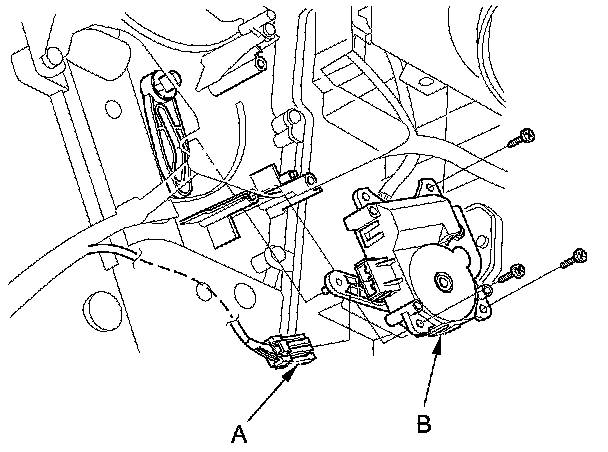

2. Disconnect the 7P connector (A) from the passenger's air mix control motor. Remove the self-tapping screws and the passenger's air mix control motor (B) from the heater unit.





3. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
