Instrument Panel Removal/Installation

Instrument Panel Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Tilt the steering column down.

2. Lower the shift lever knob.

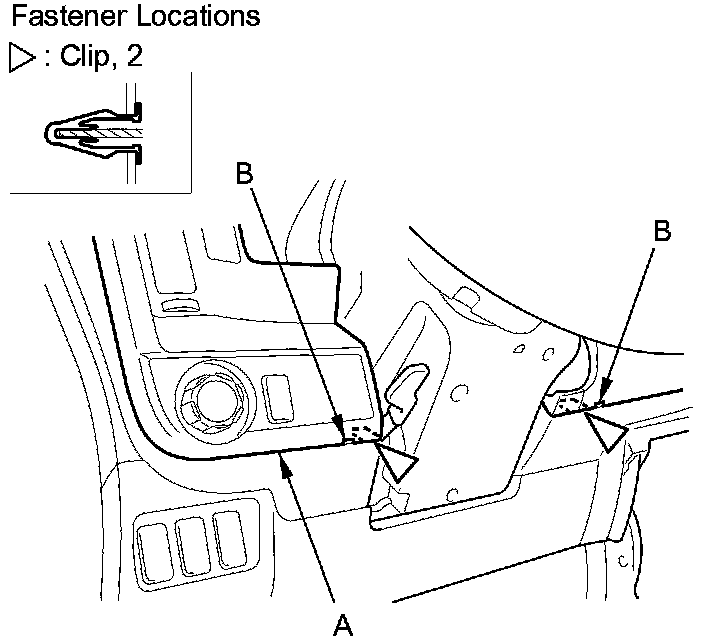

3. Pry up on the lower edge of the instrument panel (A) at the notches (B) to detach the clips.

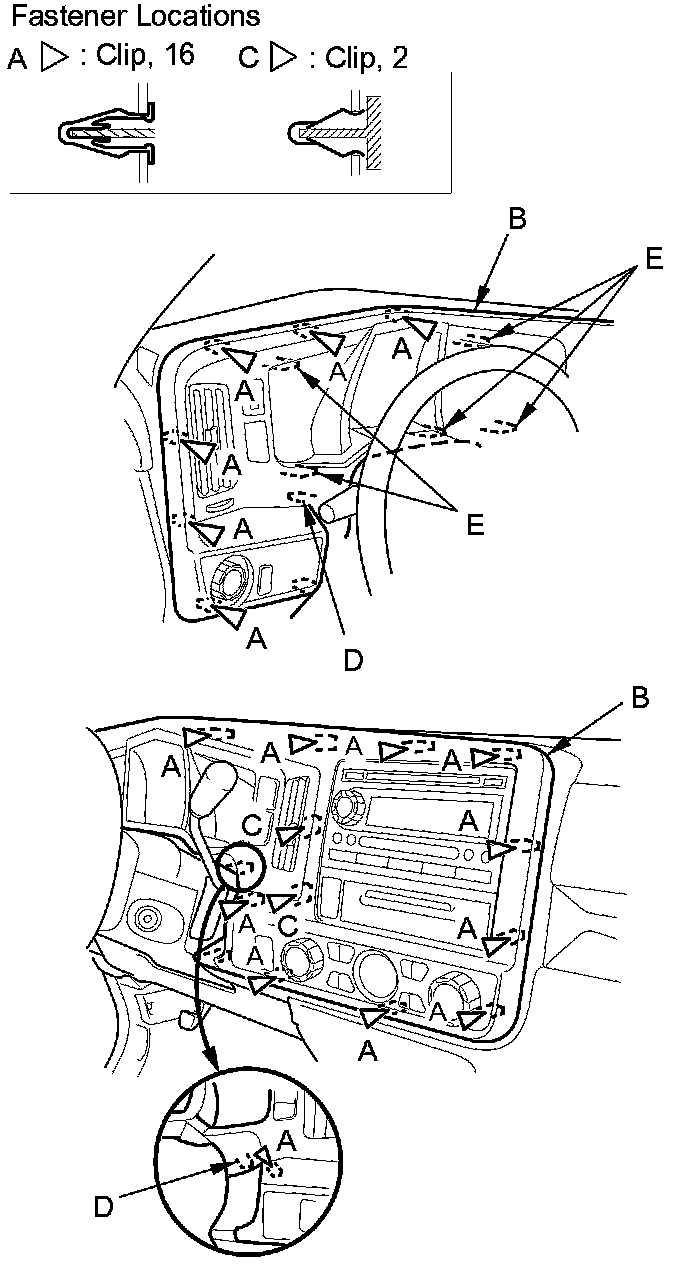

4. Detach the clips (A) along the edge of the instrument panel (B). Gently pull out the instrument panel to detach the clips (C), and release the hooks (D), then release the instrument panel from the guide hooks (E) of the gauge control module.

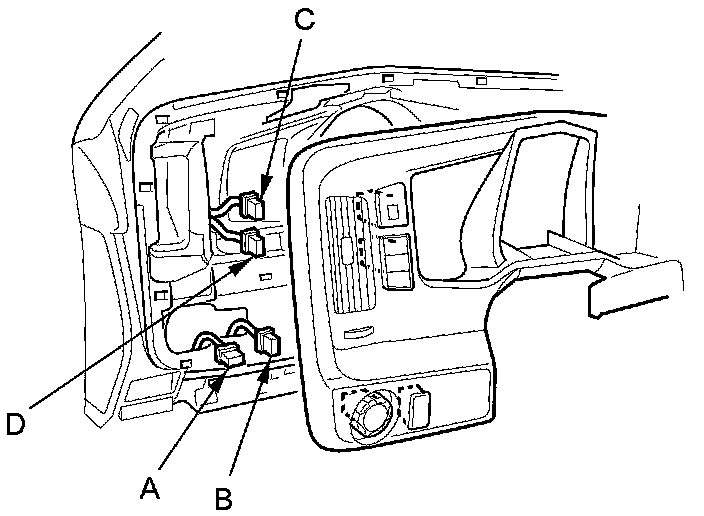

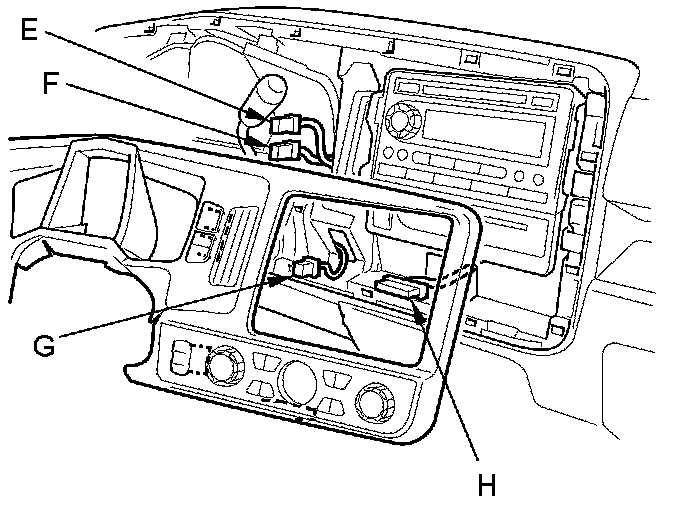

5. Disconnect the headlight switch connector (A), the cargo area light switch connector (B), the illumination switch connector (C), the moonroof switch connector (D) (for some models), the VTM-4 LOCK switch connector (E), the select/reset information switch connector (F), the interior light switch connector (G), and the climate control unit connector or the HVAC control unit connector (H).

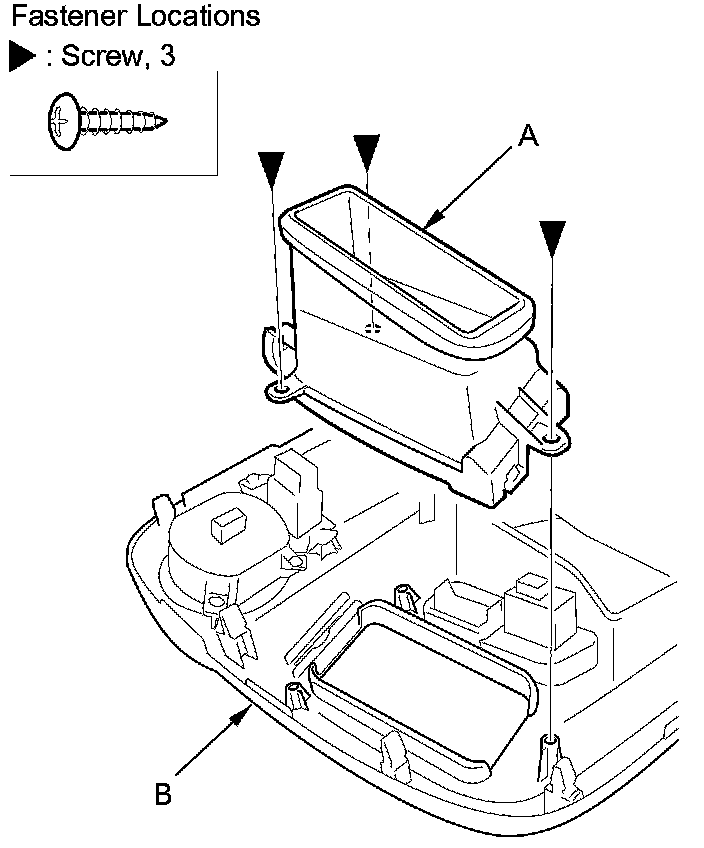

6. If necessary, remove the screws securing the driver's vent (A), then remove the driver's vent from the instrument panel (B).





7. Install the panel in the reverse order of removal, and note these items:

- Make sure each connector is plugged in properly.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
