Odometer: Testing and Inspection

Trip Meter Select/Reset Switch Test/Replacement

1. Remove the instrument panel Instrument Panel Removal/Installation.

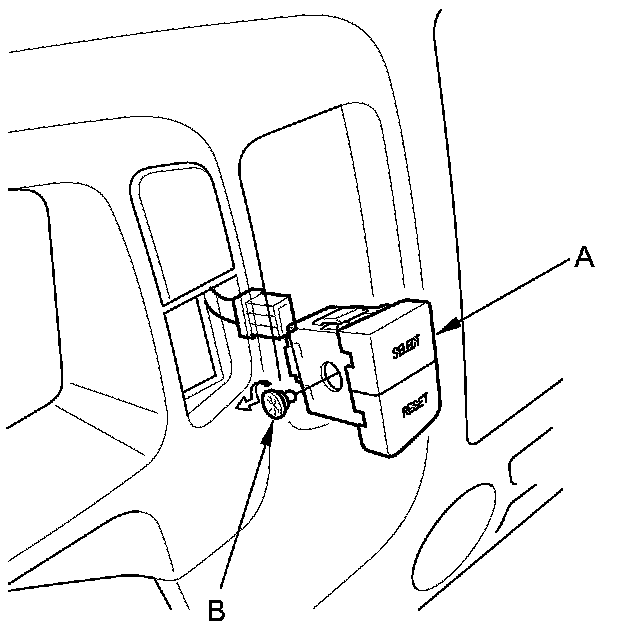

2. Carefully push out the select/reset switch (A) from behind the instrument panel.

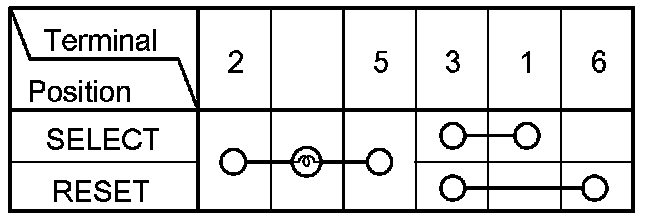

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the illumination bulb (B) or the switch.

5. Install the switch in the reverse order of removal.
