Cargo Lamp Switch: Testing and Inspection

Cargo Area Light Switch Test

1. Remove the dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

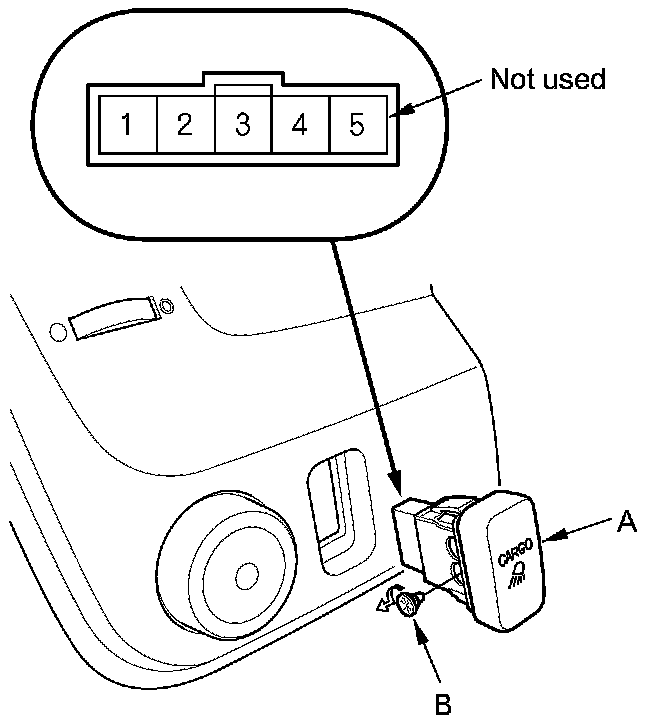

2. Push the cargo area light switch (A) from behind the dashboard lower panel.

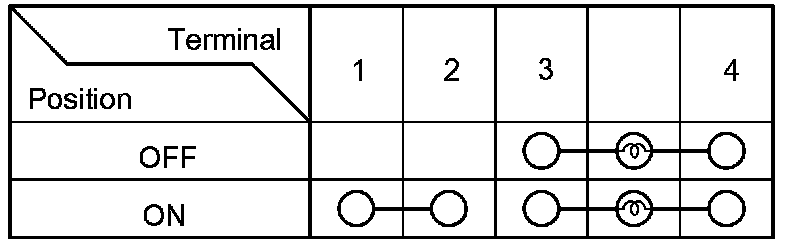

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the bulb (B) or the cargo area light switch.

5. Install the switch in the reverse order of removal.
