Cargo Lamp: Service and Repair

Cargo Area Light Replacement

1. Remove the screw and cargo area light (A).

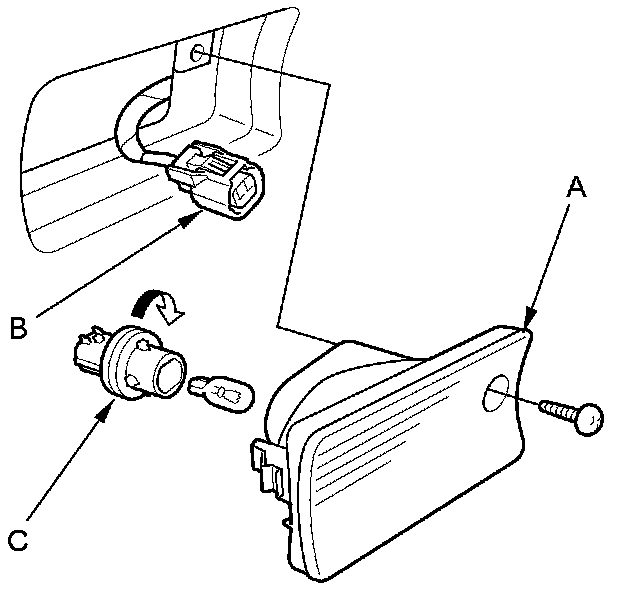

Cargo Area Light 1

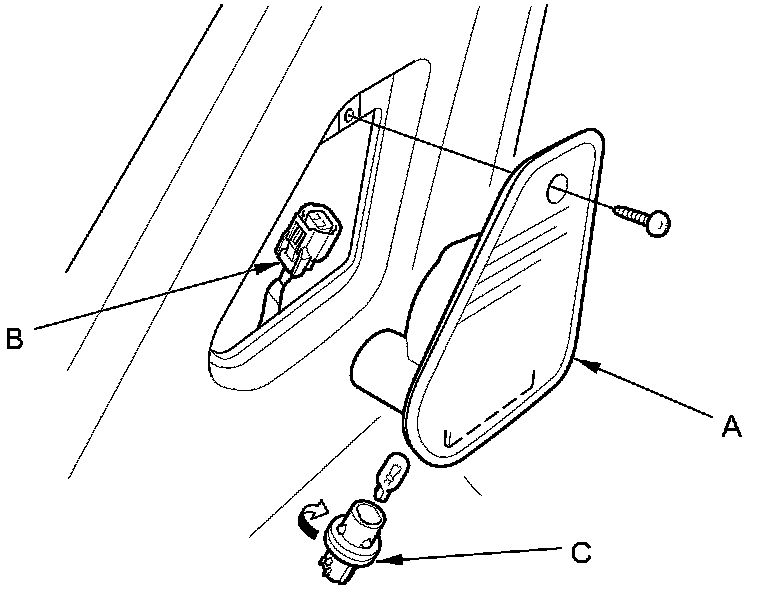

Cargo Area Light 2





2. Disconnect the 2P connector (B) from the light.

3. Turn the bulb socket (C) 45 ° counterclockwise to remove the bulb.

4. Install the light in the reverse order of removal.
