Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light Replacement

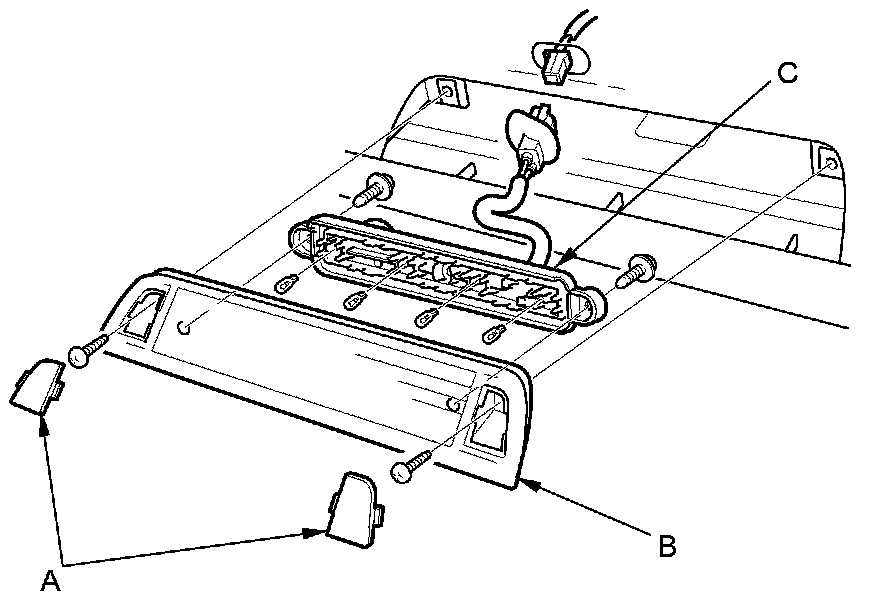

1. Remove the covers (A) and screws from the high mount brake light (B).









2. Remove the bolts and cover (C), then remove the bulbs.

3. Install the light in the reverse order of removal.
