Courtesy Lamp: Service and Repair

Ambient Light Replacement

With HomeLink Remote Control System

1. Remove the front individual map light Service and Repair.

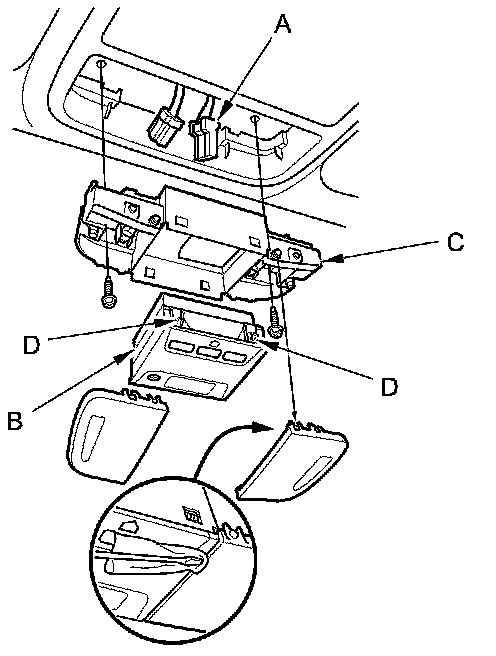

2. Disconnect the 10P connector (A) from the ambient light.





3. Carefully pry off the ambient light assembly (B) from the map light housing (C) while pressing in on the retaining tabs (D).

4. Install the light in the reverse order removal.
