Fog/Driving Lamp Bulb: Service and Repair

Fog Light Bulb Replacement

RTL and EX-L models

1. Remove the inner fender Front Inner Fender Replacement.

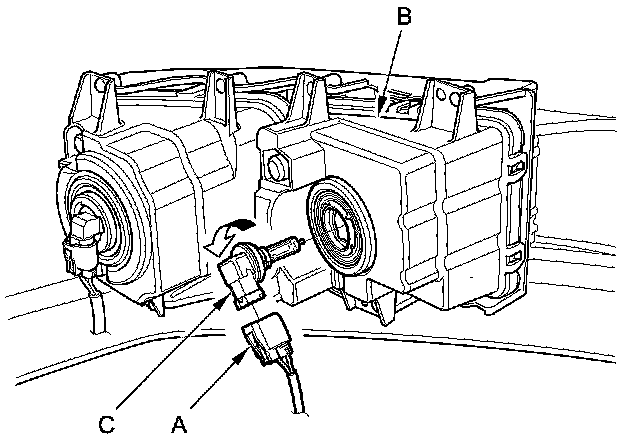

2. Disconnect the 2P connector (A) from the fog light (B).









3. Turn the fog bulb socket (C) 45 ° counterclockwise to remove it from the housing.

4. Install a new bulb in the reverse order of removal.

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with alcohol.
