Fog Light Replacement

Fog Light Replacement

RTL and EX-L models

1. Remove the front bumper Service and Repair.

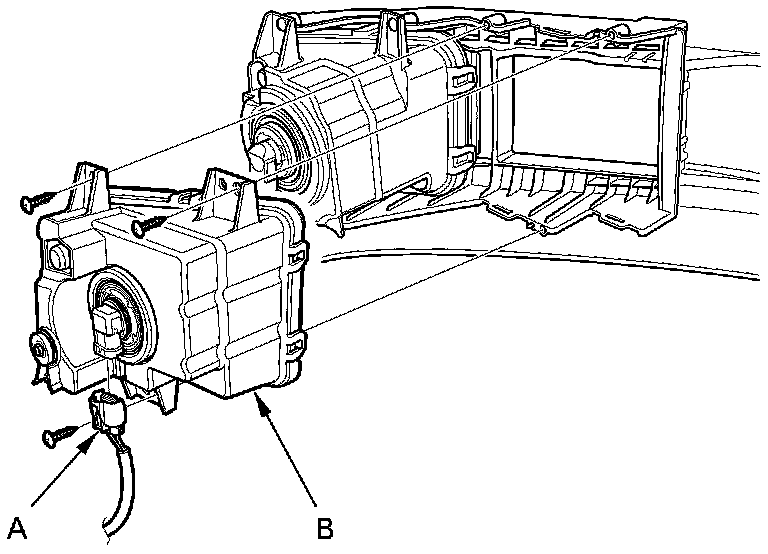

2. Disconnect the 2P connector (A) from the fog light (B).





3. Remove the screws, then remove the light.

4. Install the light in the reverse order of removal.

5. After replacement, adjust the fog lights Adjustments.
