Headlamp: Service and Repair

Headlight Replacement

1. Remove the front bumper Service and Repair.

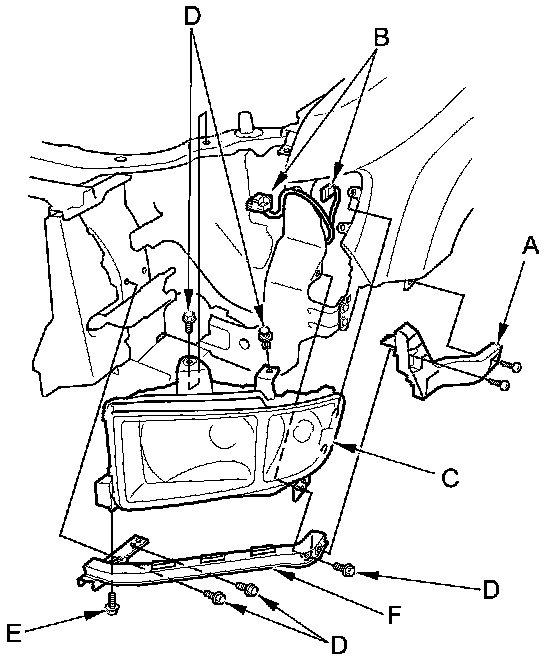

2. Remove the corner cover (A).





3. Remove the connectors (B) from the headlight assembly (C).

4. Remove the five mounting bolts (D) and clip, then remove the headlight.

5. Remove the bolt (E) and the corner upper beam (F) from the headlight.

6. Install the headlight in the reverse order of removal.

7. After replacement, adjust the headlight Adjustments.
