Fog Light Switch Test/Replacement

Fog Light Switch Test/Replacement

RTL and EX-L models

1. Remove the dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

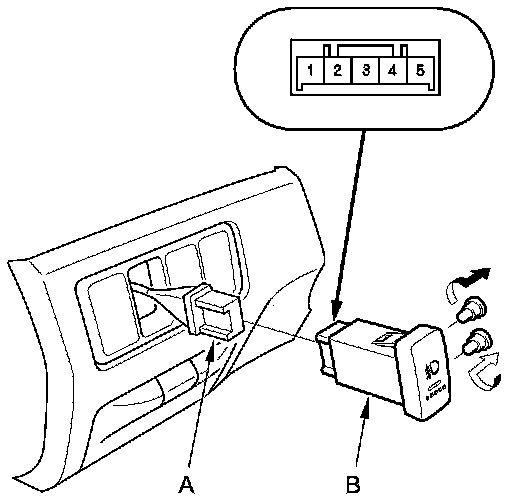

2. Disconnect the 5P connector (A) from the fog light switch (B).

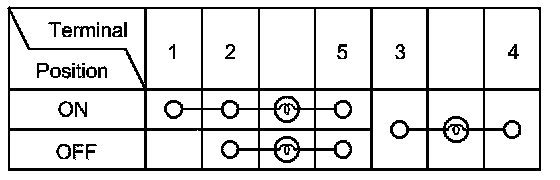

3. Check for continuity between the terminals each switch position according to the table.





4. If the continuity is not as specified, replace the switch.

5. Install the switch in the reverse order of removal.
