Interior Light Switch Test/Replacement

Interior Light Switch Test/Replacement

1. Remove the instrument panel Instrument Panel Removal/Installation.

2. Push out the interior light switch (A) from behind the dashboard lower cover.

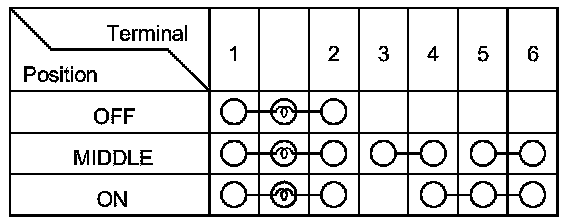

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the bulb (B) or the interior light switch.

5. Install the switch in the reverse order of removal.
