Connector Locations

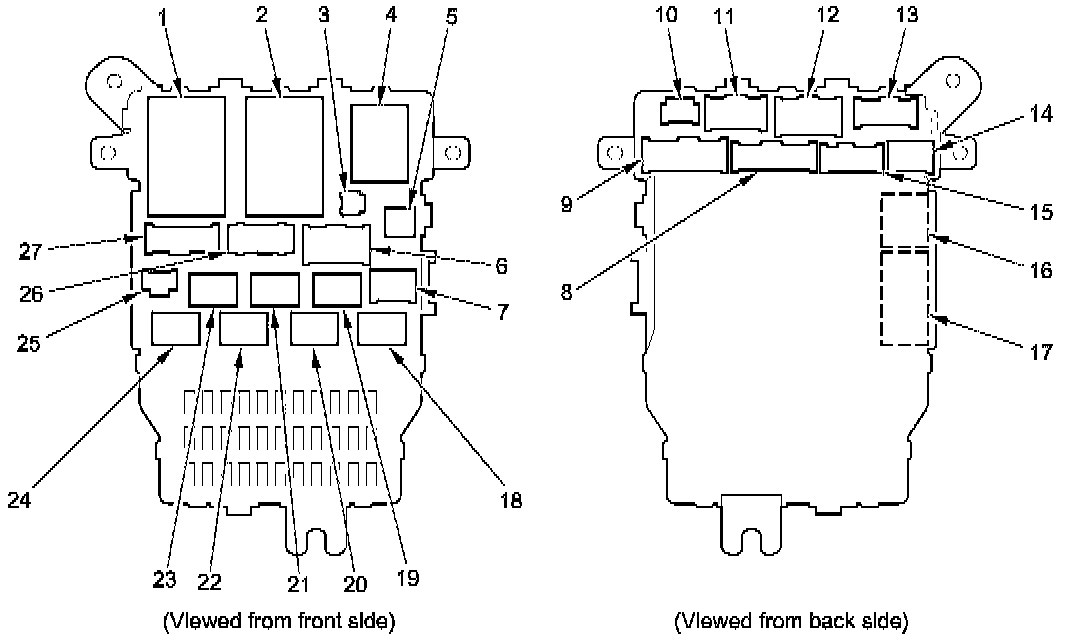

Fuse/Relay Box Connector Locations

Under-Hood Fuse/Relay Box










Under-Dash Fuse/Relay Box

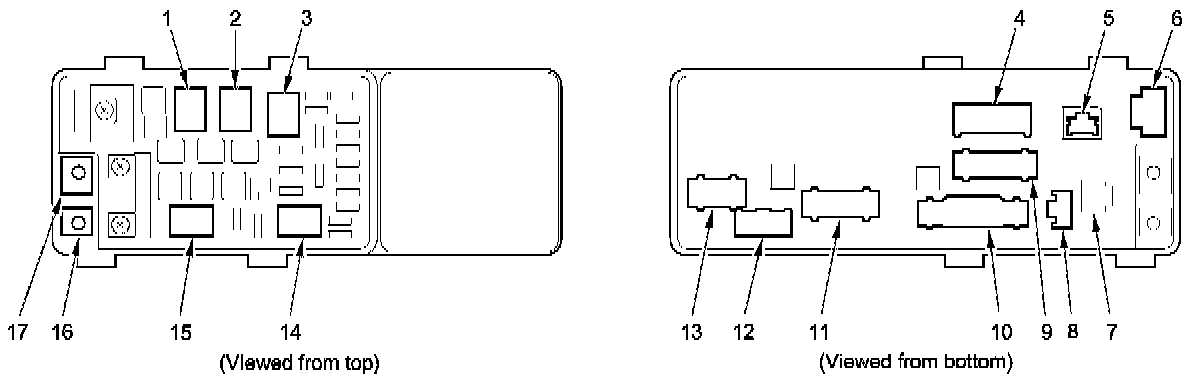

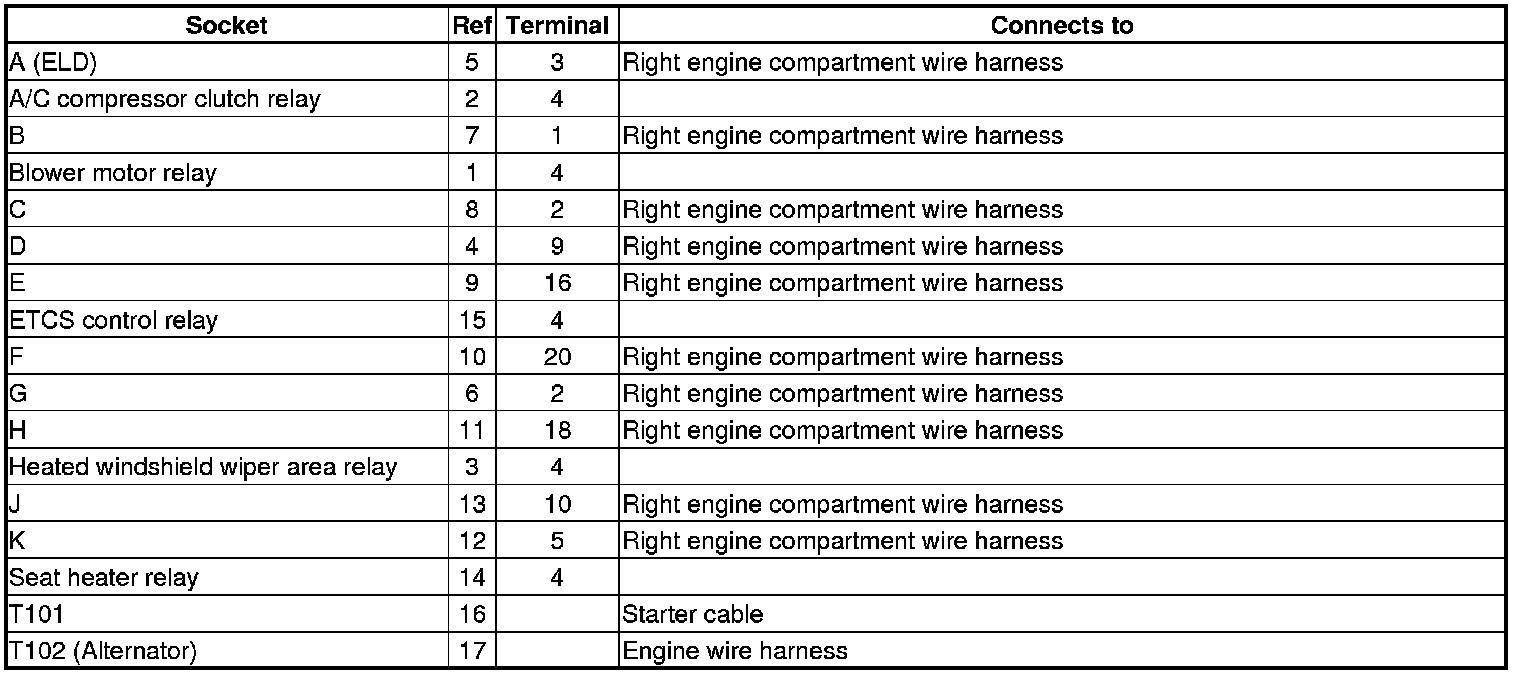

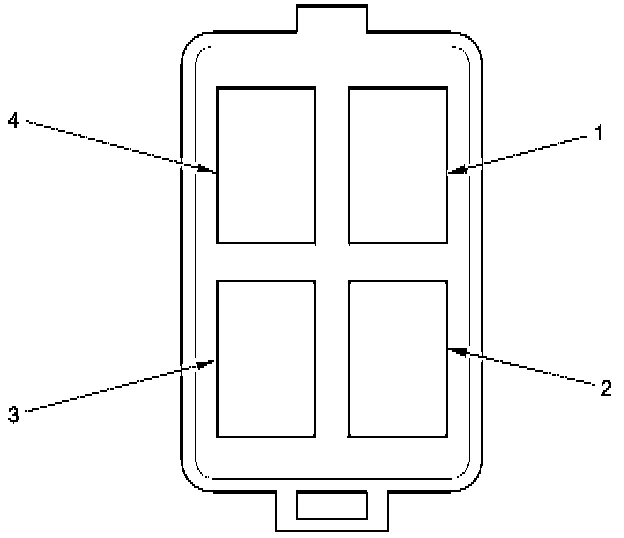

Auxiliary Under-Hood Relay box

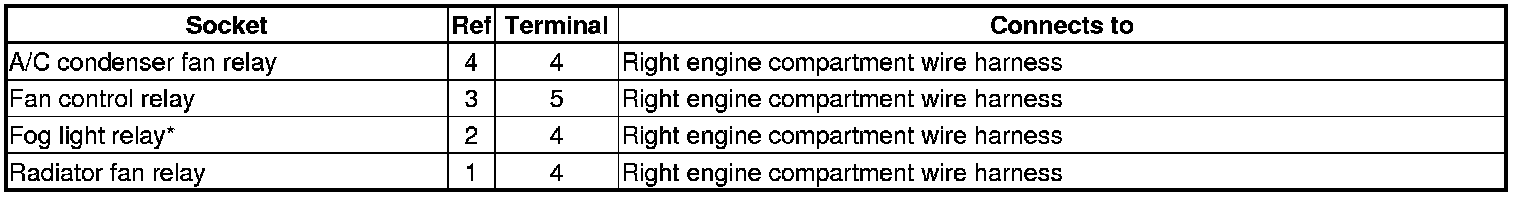

Auxiliary Under-Hood Fuse Box
