Under-Dash Fuse/Relay Box Removal And Installation

Under-Dash Fuse/Relay Box Removal and Installation

Special Tools Required

- Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0

NOTE: SRS components are located in this area. Review the SRS component locations Locations, and precautions and procedures Service and Repair before doing repairs or service.

Removal

1. Do the battery terminal disconnection procedure and wait at least 3 minutes.

2. Remove the left front door sill trim and left kick panel Service and Repair.

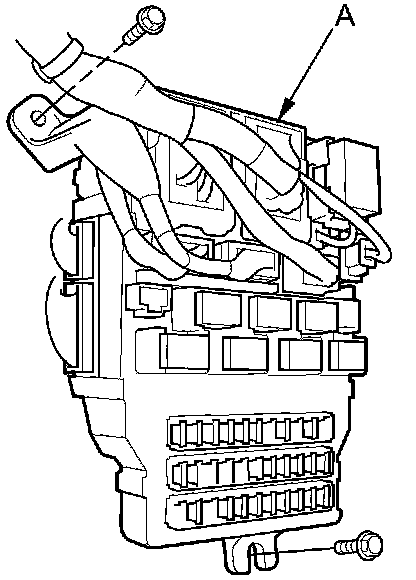

3. Disconnect the connectors from the fuse side of the under-dash fuse/relay box (A).





4. Remove the two mounting bolts and pull the fuse/relay box away from the body.

5. Disconnect the connectors and remove the under-dash fuse/relay box.

NOTE: Some SRS harness connectors are the spring-loaded lock type.

6. If replacing the fuse/relay box, carefully remove the relays by using the relay puller.

NOTE: Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start.

Installation

1. Install relays and connect the connectors to the under-dash fuse/relay box, then install the under-dash fuse/relay box in the reverse order of removal.

2. Install the removed parts in the reverse order of removal.

3. Do the battery terminal reconnection procedure.

4. Confirm that all systems work properly.
