AC Power Outlet Replacement

AC Power Outlet Replacement

1. Remove the center console Center Console Disassembly/Reassembly.

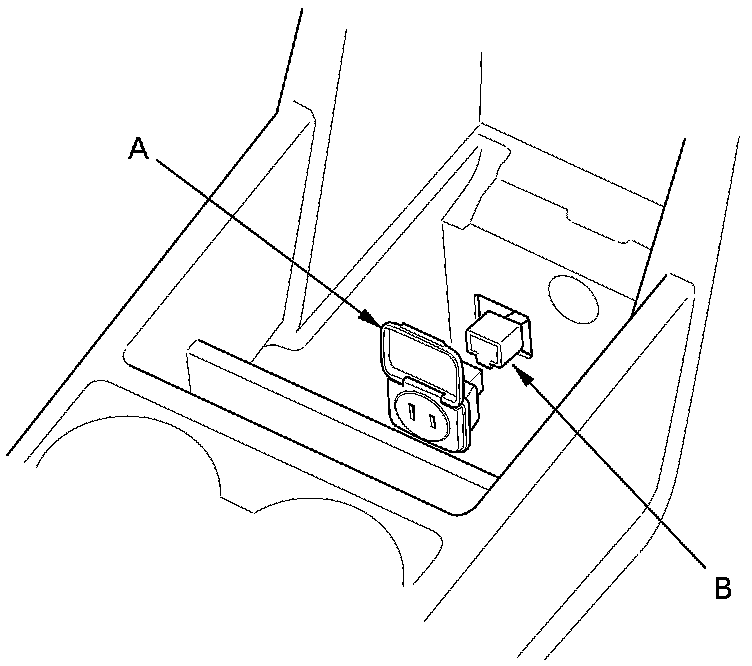

2. Remove the power outlet (A), and disconnect the 3P connector (B).





3. Install the power outlet in the reverse order of removal.
