Evaporative Emission Control Canister: Service and Repair

EVAP Canister Replacement

1. Raise the vehicle on a lift Service and Repair.

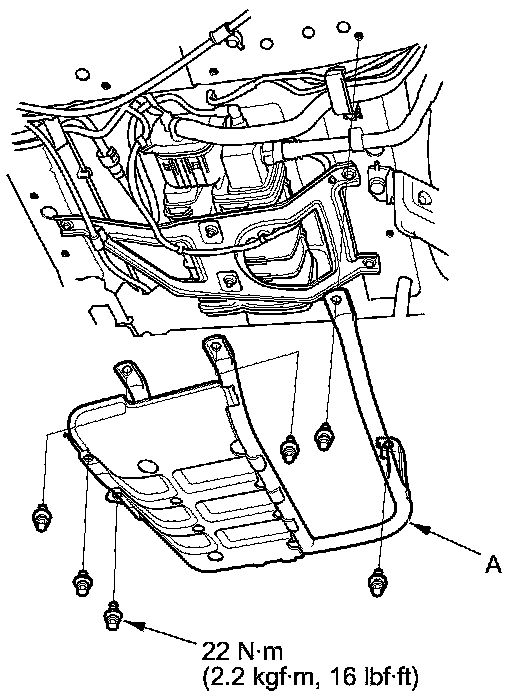

2. Remove the fuel tank guard (A).

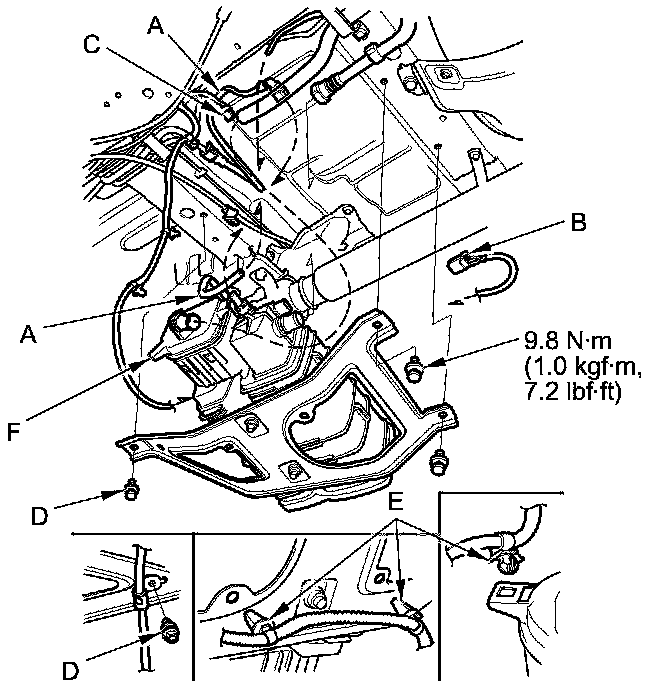

3. Remove the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).





4. Remove the bolts (D) and the clips (E).

5. Remove the EVAP canister assembly (F).

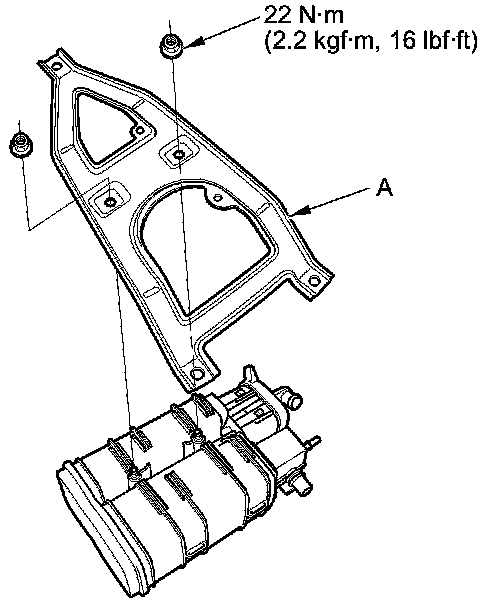

6. Remove the EVAP canister bracket (A).

NOTE: The canister filter remains on the bracket.





7. Install the parts in the reverse order of removal.
