Fuel Tank: Service and Repair

Fuel Tank Replacement

1. Drain the fuel tank Service and Repair.

2. Raise the vehicle on a lift Service and Repair.

3. Remove the exhaust pipe Service and Repair.

4. Remove the propeller shaft Propeller Shaft Removal, and support it with jackstands.

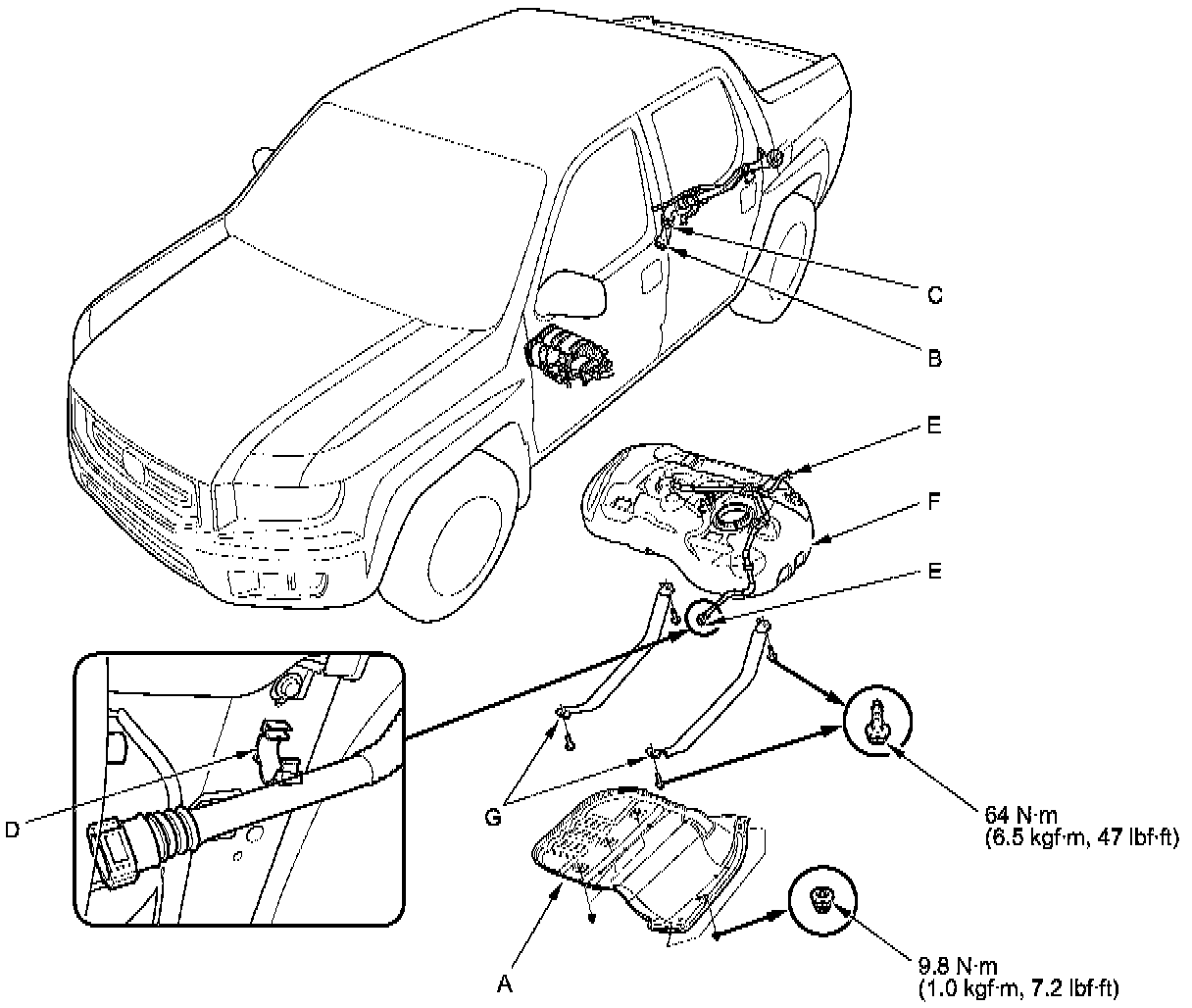

5. Remove the fuel tank protector (A).





6. Loosen the clamp (B), and disconnect the tube (C).

7. Open the clamp (D).

8. Disconnect the hoses (E). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.

9. Place a jack or other support under the tank (F).

10. Remove the strap bolts and the straps (G).

11. Remove the fuel tank.

12. Install the parts in the reverse order of removal.
