SRS Unit Replacement

SRS Unit Replacement

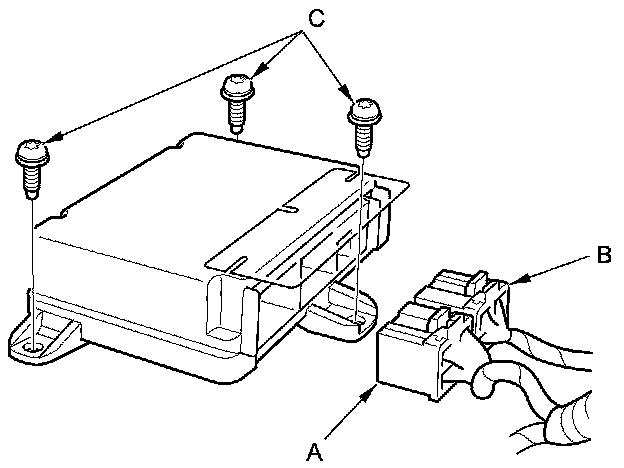

Removal

1. Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes before starting work.

2. Remove the driver's and passenger's console side trim Center Console Removal/Installation.

3. Disconnect SRS unit connector A (28P) and SRS unit connector B (28P).





4. Remove the TORX bolts (C) using a TORX T30 bit, then pull out the SRS unit.

Installation

1. Install the SRS unit (A) with a new TORX bolts (B) using a TORX T30 bit, then connect the connectors (C) to the SRS unit; push them into position until they click.

NOTE: Be sure the SRS unit is sitting squarely against its bracket before torquing the TORX bolts.





2. Install the driver's and passenger's console side trim Center Console Removal/Installation.

3. Do the battery terminal reconnection procedure Procedures.

4. Do the ODS unit initialization Programming and Relearning.

5. Check the operation of the ODS unit with the HDS ODS Unit Operation Check.

6. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
