Passenger's Airbag Cutoff Indicator Illumination Bulb Test/Replacement

Passenger's Airbag Cutoff Indicator Illumination Bulb Test/Replacement

1. Remove the audio unit Audio Unit Removal/Installation.

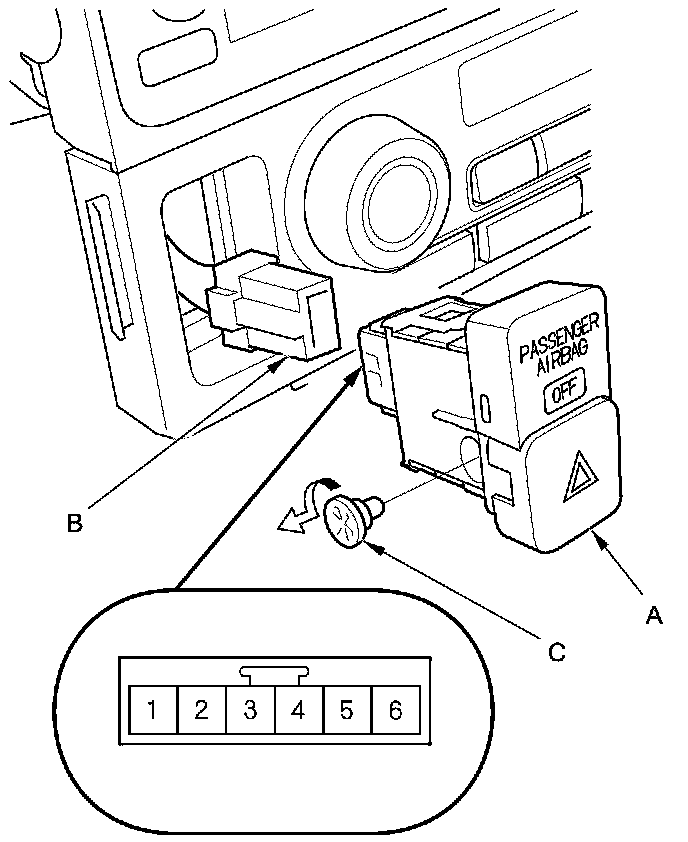

2. Push out the passenger's airbag cutoff indicator (A) from behind the audio unit.





3. Disconnect the 6P connector (B) from the passenger's airbag cutoff indicator.

4. Check for continuity between the No. 3 and No. 4 terminals of the indicator. If there is no continuity, replace the bulb (C).

5. Install the parts in the reverse order of removal.

6. Clear any DTCs with the HDS.
