Steering Gear Mount: Service and Repair

Steering Gearbox Mount Cushion Replacement

1. Remove the steering gearbox Steering Gearbox Removal.

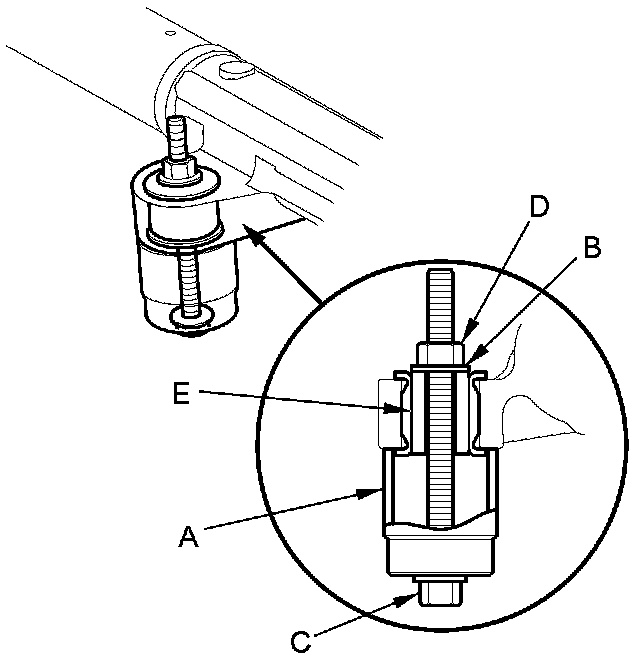

2. Position a 34 mm socket (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C) and a 10 mm nut (D) as shown.





3. Hold the nut with a wrench, and tighten the flange bolt with another wrench. Remove the gearbox mount cushion (E).

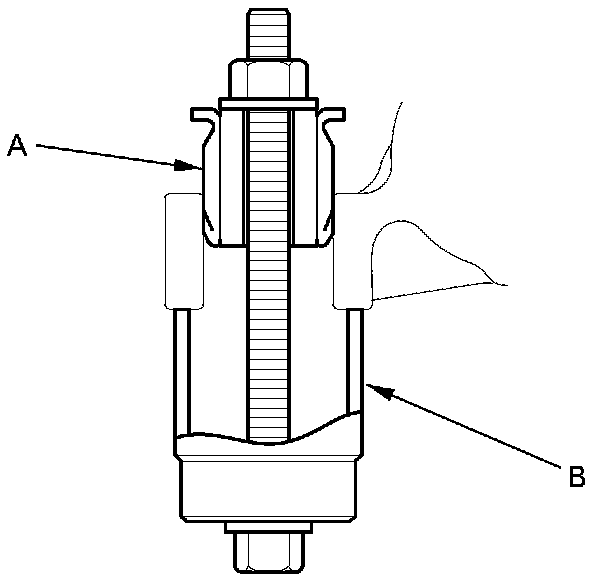

4. Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place it on the gearbox mounting cushion hole.





5. Position 34 mm socket (B) on the flange part of the gearbox housing with a washer, a flange bolt, and a nut as shown.

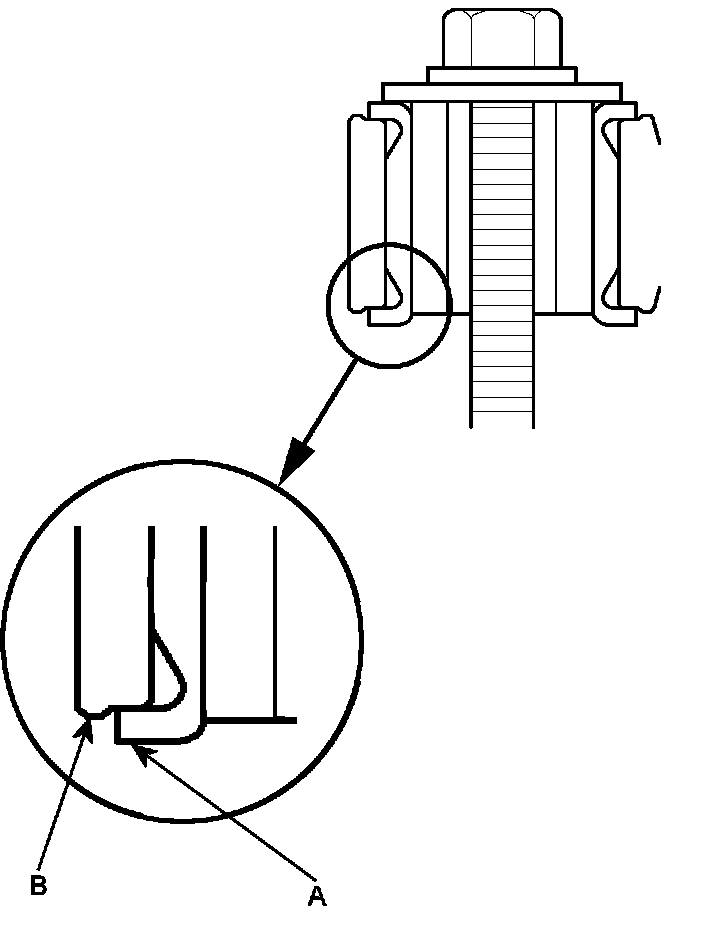

6. Install the gearbox mount cushion by tightening the flange bolt until the mount cushion edges (A) properly fits on the gearbox flange surface (B).





7. Install the steering gearbox Steering Gearbox Installation.
