Fluid Line/Hose: Service and Repair

ATF Cooler Hose Replacement

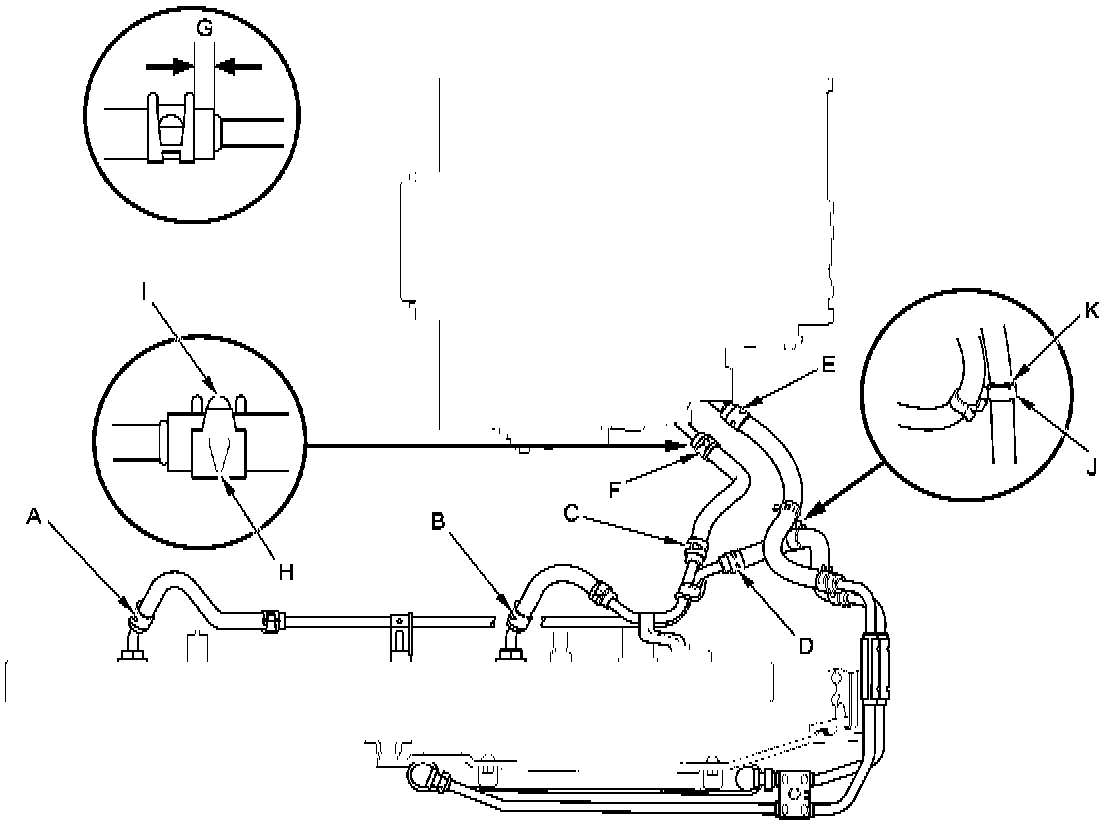

Exploded View





NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

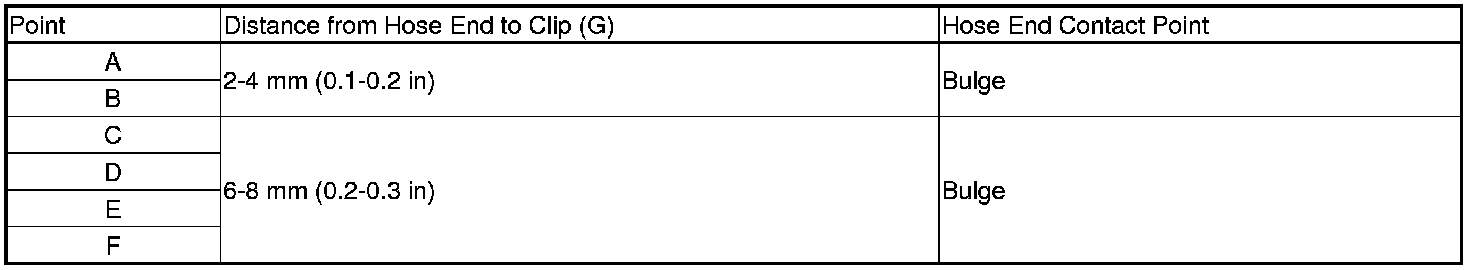

1. Install the ATF cooler hoses over the ATF cooler lines with the clips at the appropriate points in reference to the following list.






2. Secure the hose with the clip (H), aligning the tab (I) upward.

3. Secure the ATF cooler hose with the clamp (J) at the marking (K).

4. Refill the transmission with ATF to the proper level ATF Level Check.
