Transmission Fluid Pressure Switch A (2ND Clutch) Replacement

Transmission Fluid Pressure Switch A (2nd Clutch) Replacement

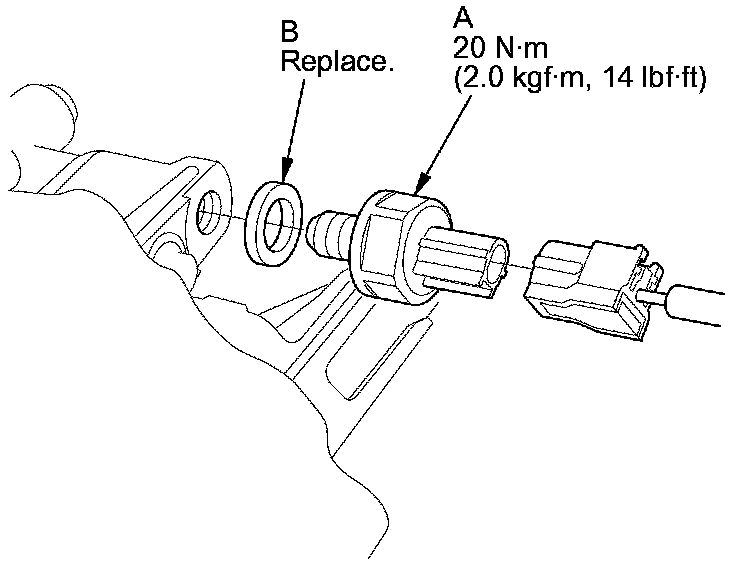

1. Disconnect the transmission fluid pressure switch A (2nd clutch) connector, and remove transmission fluid pressure switch A (2nd clutch) (A).





2. Install a new transmission fluid pressure switch A (2nd clutch) and a new sealing washer (B), and tighten the switch.

3. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
