A/T Differential Oil Seal Replacement

A/T Differential Oil Seal Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver Attachment 07GAD-PG40100
- Oil Seal Driver Attachment, 58 mm 07JAD-PH80101

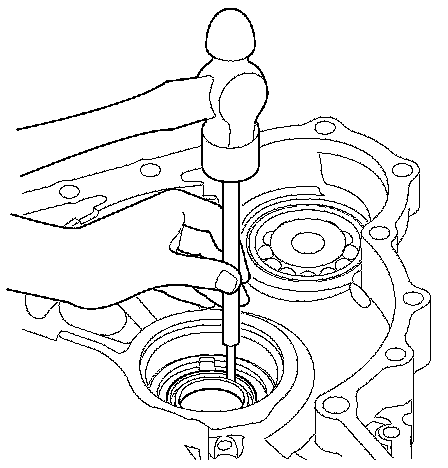

1. Remove the oil seal from the transmission housing.

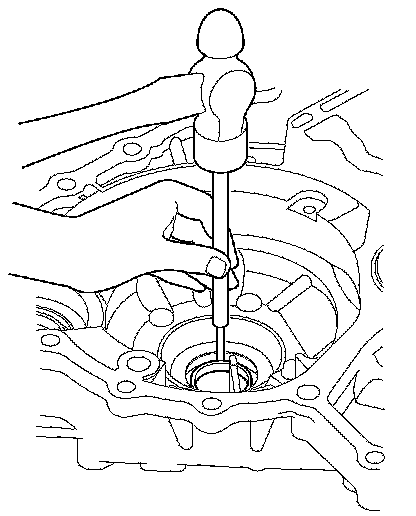

2. Remove the oil seal from the torque converter housing.

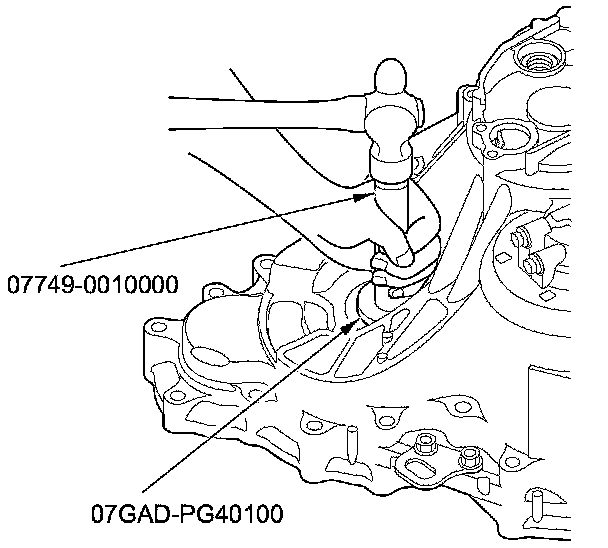

3. Install a new oil seal flush with the transmission housing using the driver handle (15 x 135L) and the oil seal driver attachment.

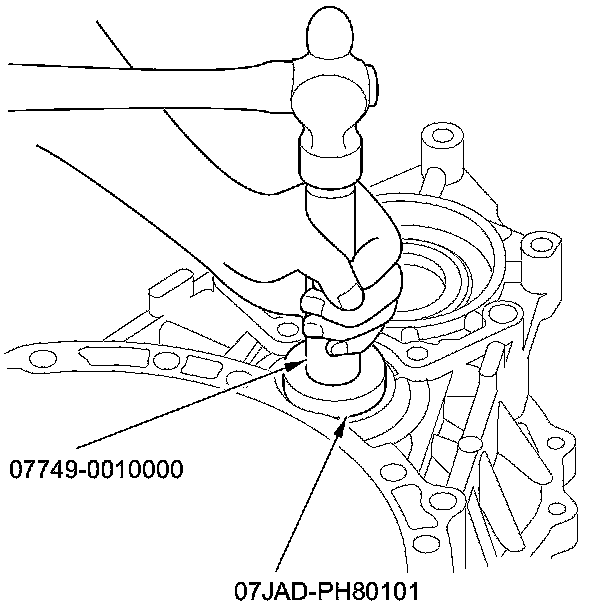

4. Install a new oil seal flush with the torque converter housing using the driver handle (15 x 135L) and the oil seal driver attachment (58 mm).
