A/T Housing Selector Control Shaft Bearing Replacement

A/T Housing Selector Control Shaft Bearing Replacement

Special Tools Required

- Bearing Remover, 10 mm 07936-GE0A000
- Remover Handle 07936-3710100
- Slide Hammer 07936-371020A
- Driver Handle, 15 x 135L 07749-0010000
- Attachment, 22 x 24 mm 07746-001A800

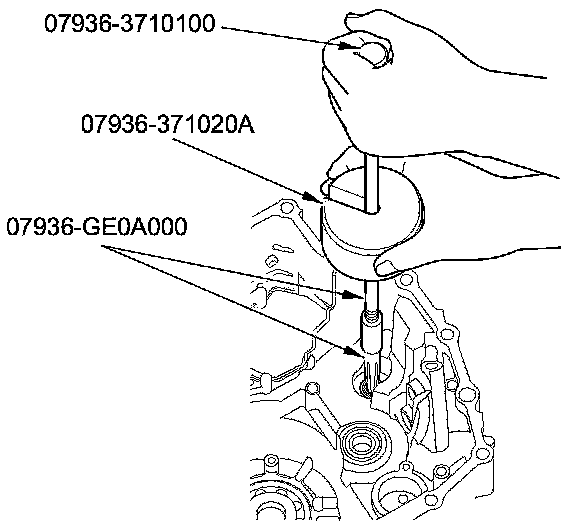

1. Remove the control shaft bearing from the transmission housing using the bearing remover (10 mm), the remover handle, and the sliding hammer weight.

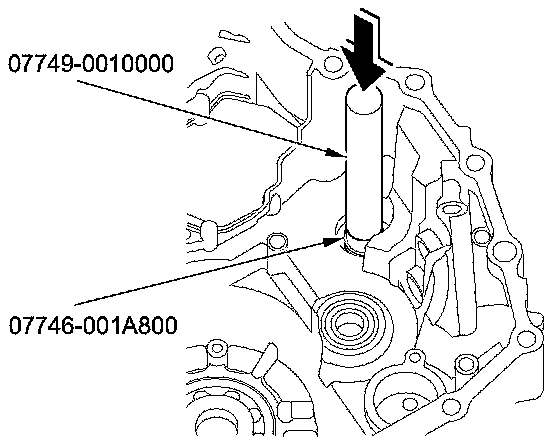

2. Install a new bearing until it bottoms in the transmission housing using the driver handle (15 x 135L) and the attachment (22 x 24 mm).
