Rear Differential Breather, Line, And Hose Replacement

Rear Differential Breather, Line, and Hose Replacement

1. Remove the left side bed panel .

2. Remove the bed floor .

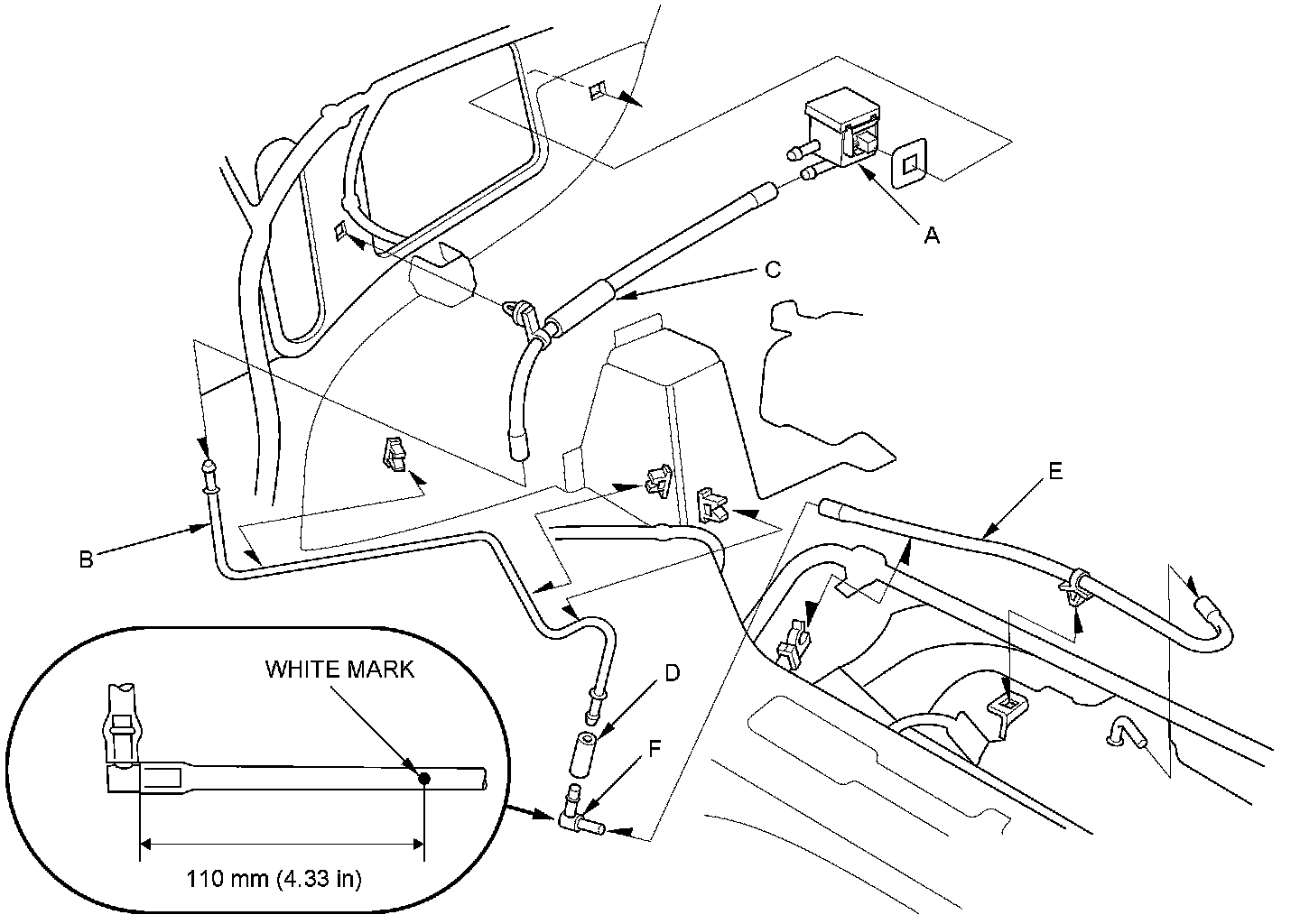

3. Remove the breather (A) and the line (B), then remove the upper hose (C), the short hose (D) and the lower hose (E).





4. Connect and install the breather and the upper hose.

5. Clamp the line into place, then connect it to the upper hose.

6. Connect the breather joint (F) to the line with the short hose.

7. Connect the breather joint to the lower hose, then connect the lower hose to the differential.

8. Make sure that all the hoses are properly routed, clipped into place, and not pinched.
