Rear Differential Backlash Inspection

Rear Differential Backlash Inspection

NOTICE
Connecting battery voltage to either the right or left clutch electromagnetic coils for more than 3 minutes will damage the rear differential.

1. Install the left rear driveshaft.

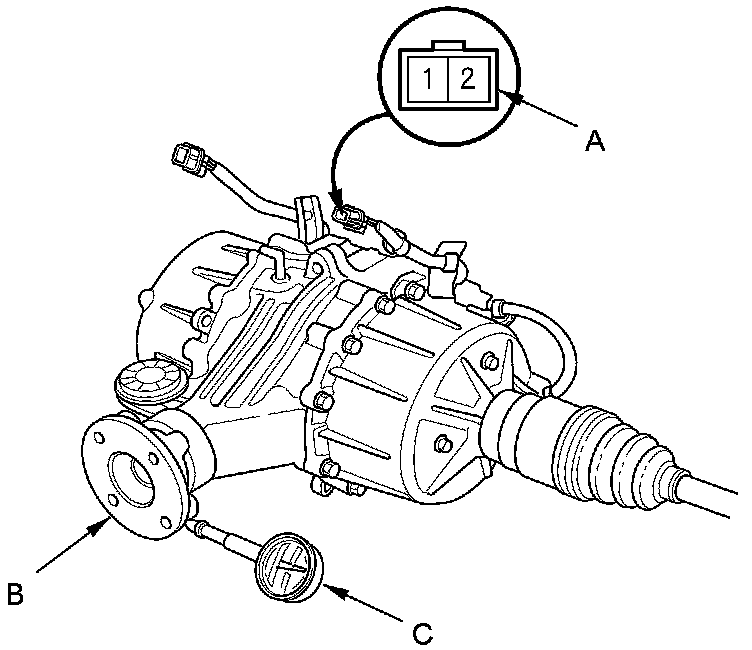

2. At the left clutch electromagnetic coil side, connect the left clutch electromagnetic coil 2P connector (A) terminal No. 1 to the battery positive terminal, and connect the terminal No. 2 to the battery negative terminal.





3. Check the backlash of the companion flange (B) with a dial indicator (C).





4. If the backlash is not within standard, replace the rear differential.
