Front Driveshaft Disassembly

Front Driveshaft Disassembly

Special Tools Required

- Threaded Adapter, 26 x 1.5 mm 07XAC-001030A
- Slide Hammer 5/8''-18 UNF, commercially available
- Boot Band Pliers, commercially available
- Bearing Puller, commercially available

Inboard Joint Side

1. Remove the boot bands. Be careful not to damage the boot.

- If the boot band is a welded type (A), cut the boot band.

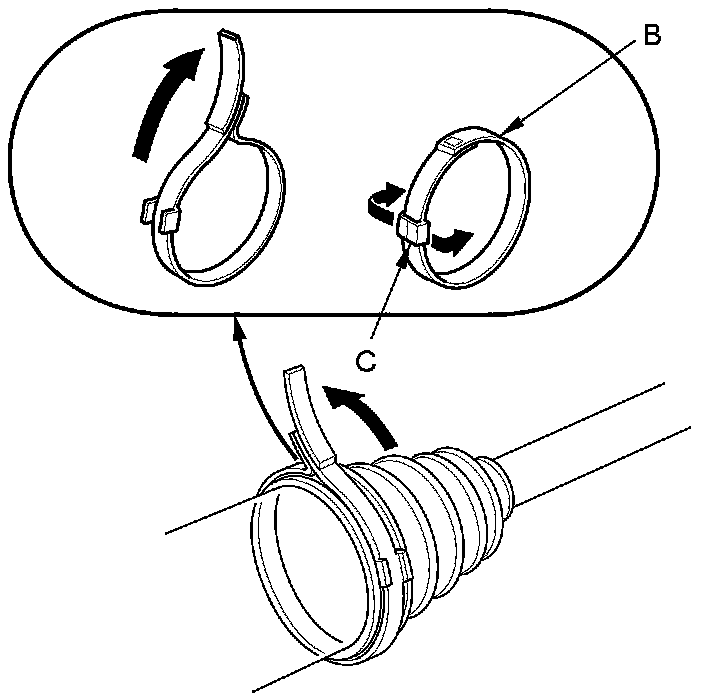

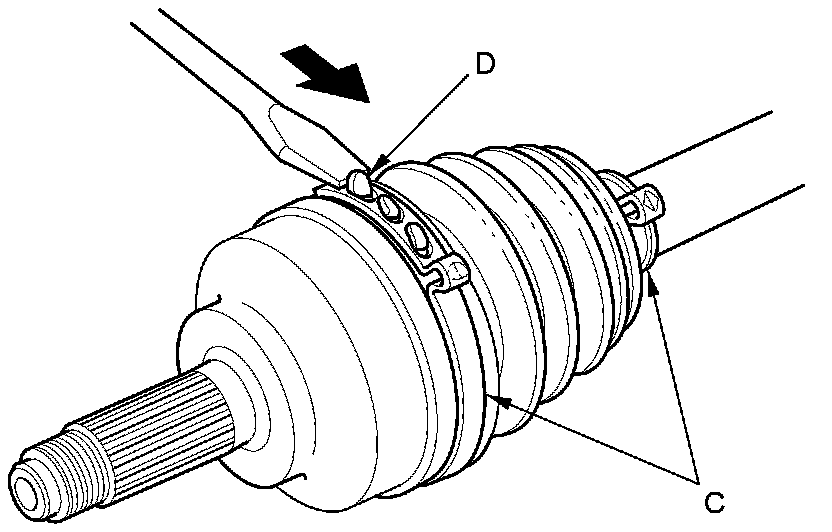

- If the boot band is a locking tab type (B), lift up the locking tab (C) with a flat-tipped screwdriver, and lift up the end of the band.

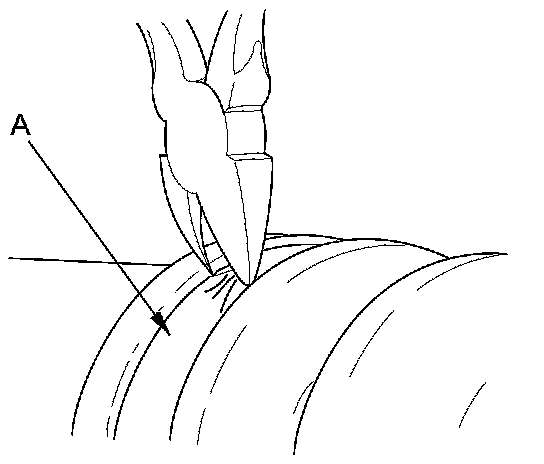

- If the boot band is a low profile type (D), pinch the boot band using commercially available boot band pliers (E).

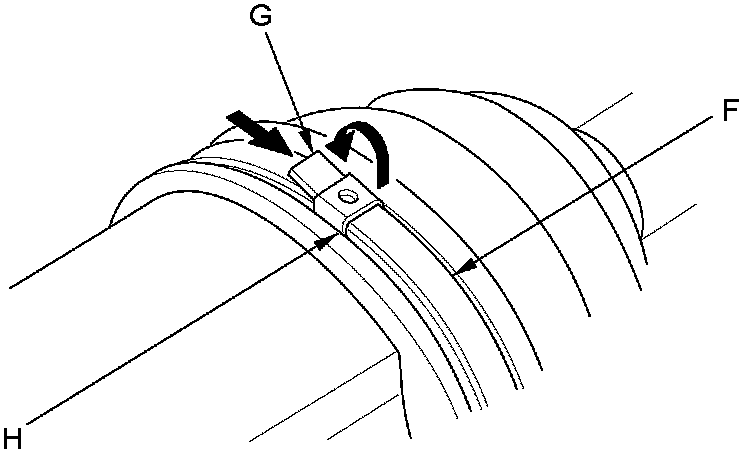

- If the boot band is a double loop type (F), lift up the band end (G), and push it into the clip (H).

Welded type





Locking tab type





Low profile type





Double loop type





2. Make marks (A) on each rollers (B) and the inboard joint (C) to identify the locations of the rollers to the grooves in the inboard joint.

NOTE: Do not engrave or scribe any marks on the rolling surface.

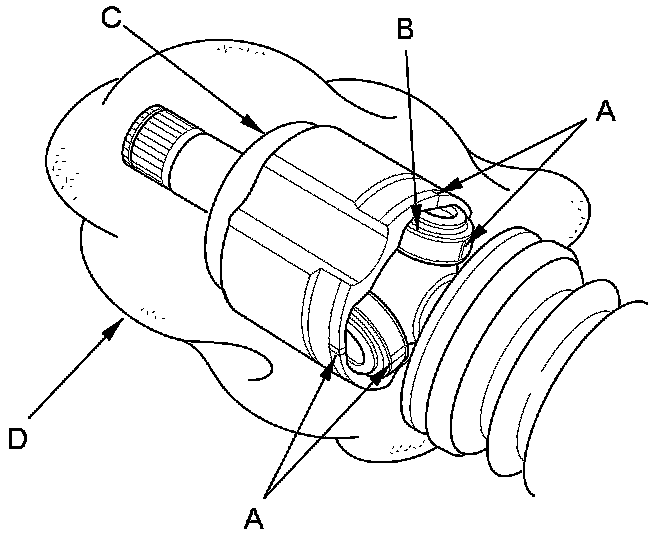

3. Remove the inboard joint on a clean shop towel (D). Be careful not to drop the rollers when separating them from the inboard joint.

4. Make marks (A) on the spider (B) that match the marks on the rollers, then remove the rollers.

NOTE: Do not engrave or scribe any marks the rolling surface.





5. Remove the circlip (C).

6. Make marks (D) on the spider and the driveshaft (E) to identify the position of the spider on the shaft.

7. Remove the spider.

NOTE: If necessary, use commercially available puller while being careful not to damage the spider.

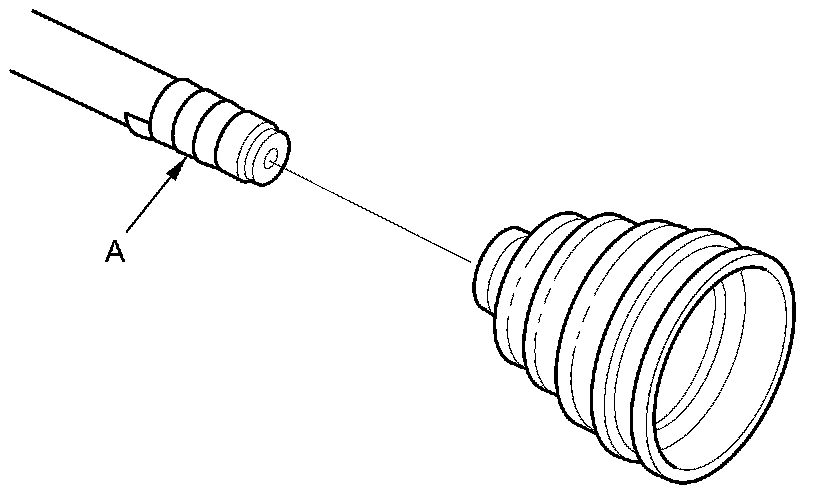

8. Wrap the splines on the driveshaft with vinyl tape (A) to prevent damaging the boot.

Double loop type/Low profile type





Locking tab type





9. Remove the inboard boot and boot band (B). Be careful not to damage the boot.

10. Remove the vinyl tape.

Outboard Joint Side

1. Remove the boot bands. Be careful not to damage the boot.

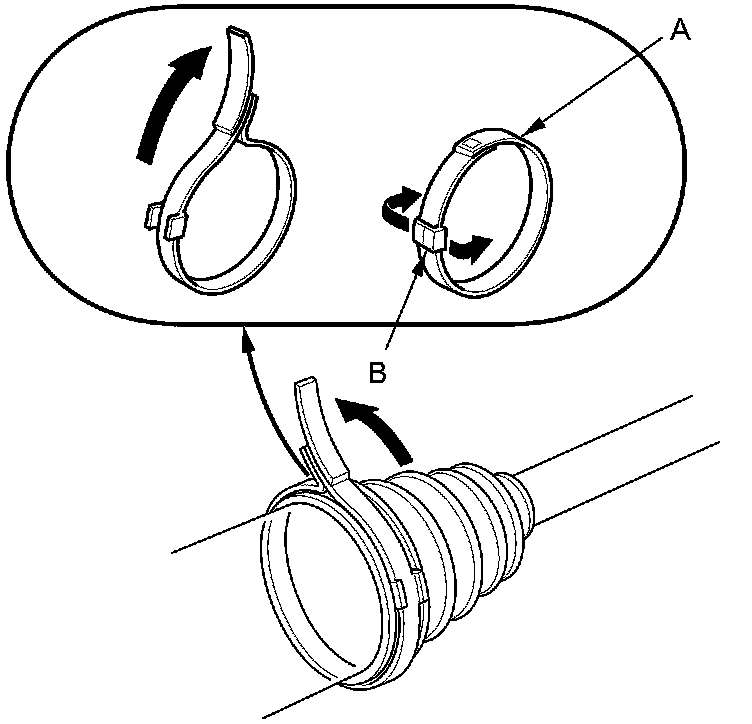

- If the boot band is a locking tab type (A), lift up the locking tab (B) with a flat-tipped screwdriver, and lift up the end of the band.
- If the boot band is a ear clamp type (C), lift up the three tabs (D) with a flat-tipped screwdriver.

Locking tab type





Ear clamp type

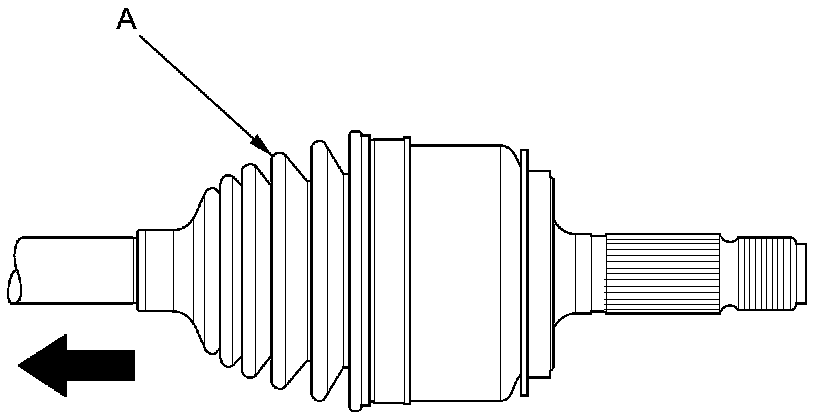

2. Slide the outboard boot (A) partially toward the inboard joint side. Be careful not to damage the boot.





3. Wipe off the grease to expose the driveshaft and the outboard joint inner race.

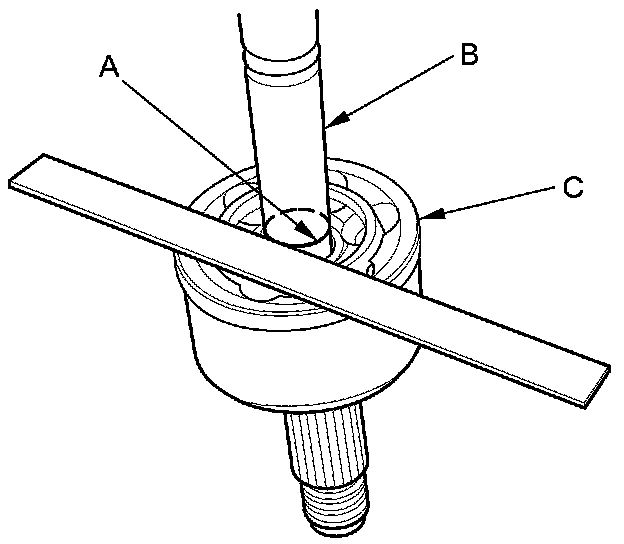

4. Make a mark (A) on the driveshaft (B) at the same level as the outboard joint end (C).





5. Securely clamp the driveshaft in a bench vise with a shop towel wrapped around the driveshaft.

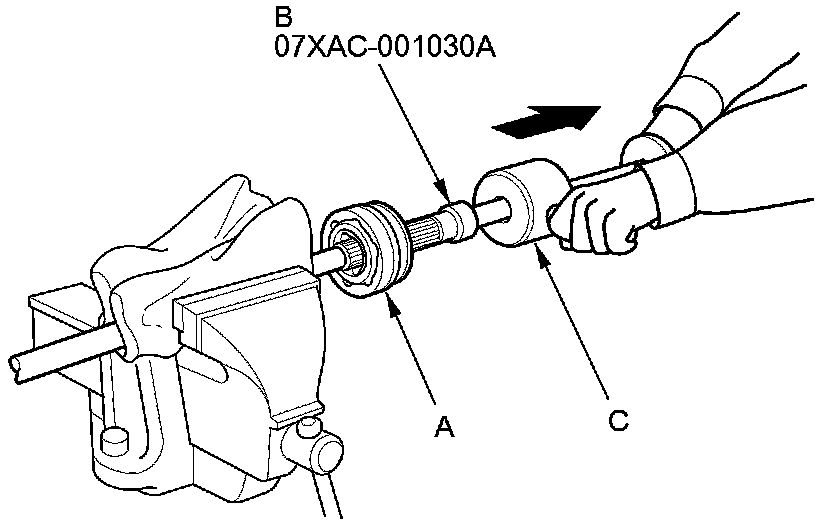

6. Remove the outboard joint (A) using the 26 x 1.5 mm threaded adapter (B) and a commercially available 5/8''-18 UNF slide hammer (C).





7. Remove the driveshaft from the bench vise.

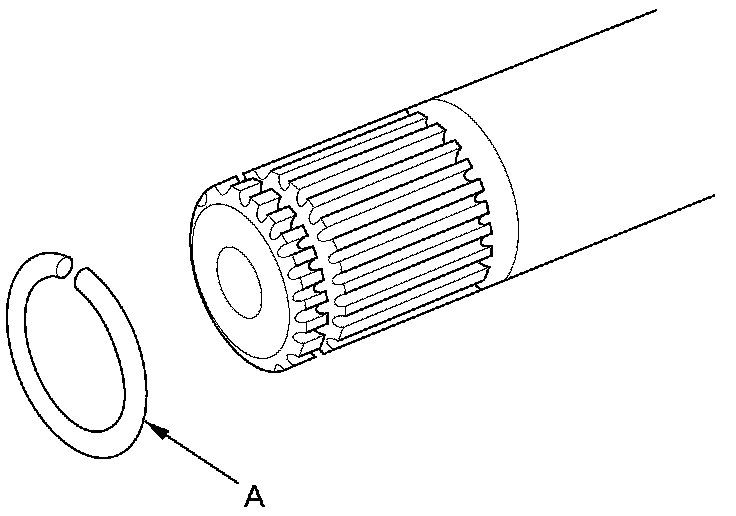

8. Remove the stop ring (A) from the driveshaft.

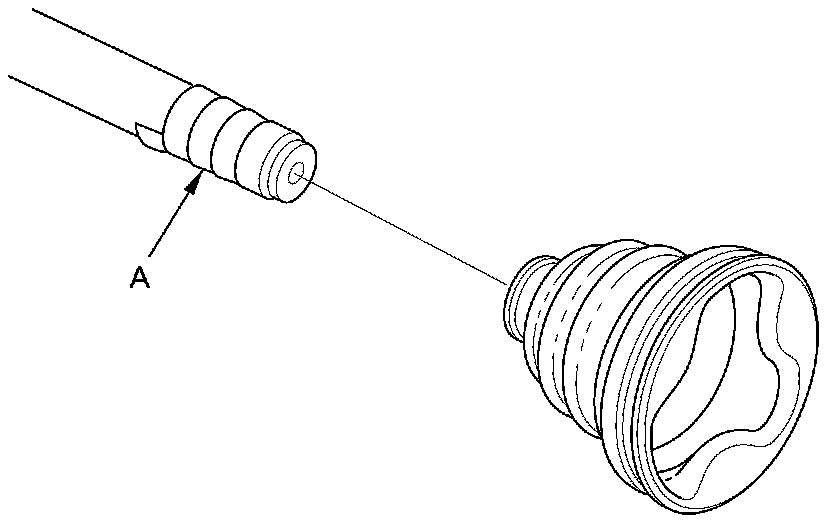

9. Wrap the splines on the driveshaft with vinyl tape (A) to prevent damaging the boot.

Ear clamp type





Locking tab type

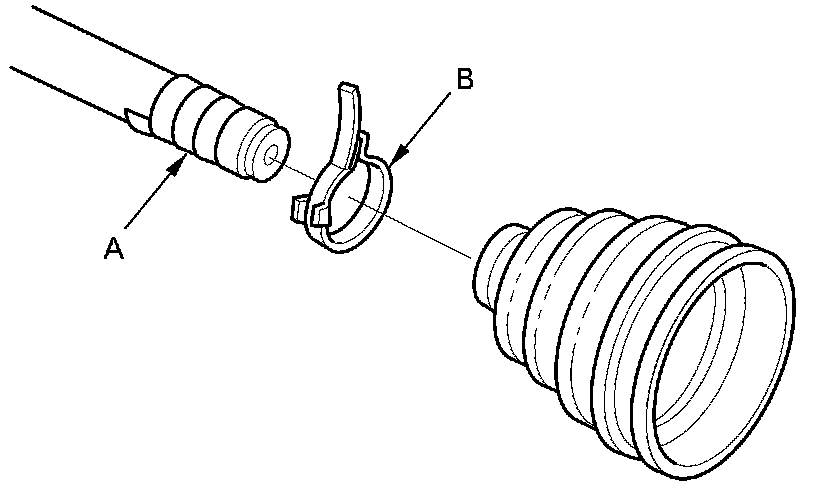

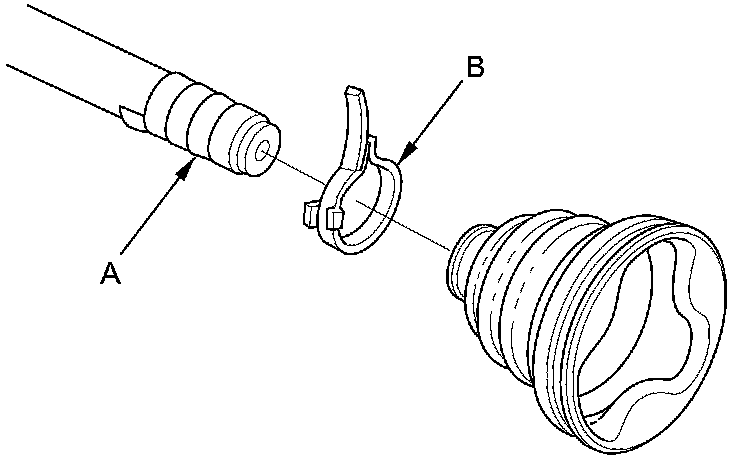

10. Remove the outboard boot and boot band (B). Be careful not to damage the boot.

11. Remove the vinyl tape.
