Intermediate Shaft Reassembly

Intermediate Shaft Reassembly

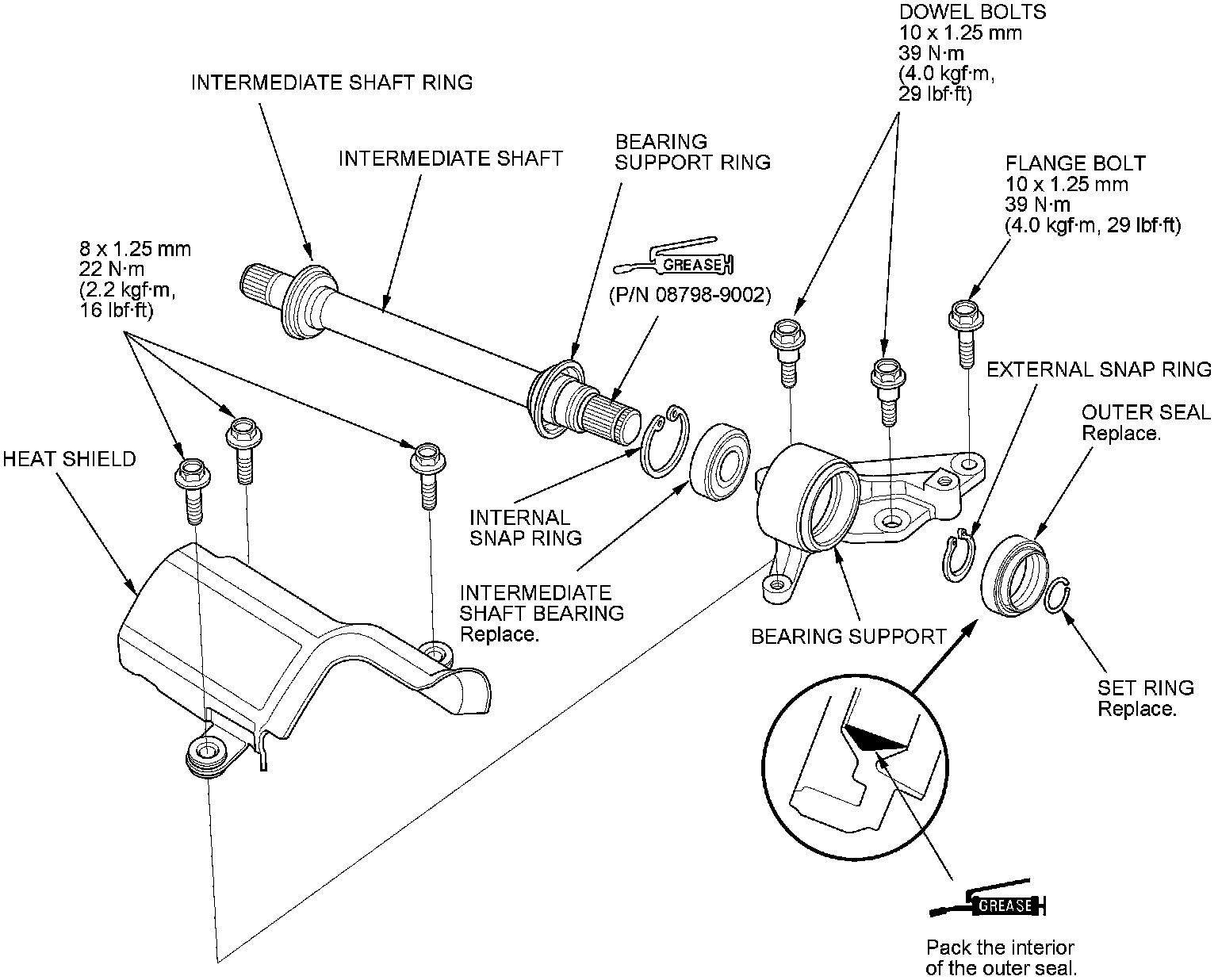

Exploded View





Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Support Base Attachment 07LAF-SM40300
- Support Base 07965-SD90100
- Oil Seal Driver Attachment, 58 mm 07JAD-PH80101
- Fork Seal Driver, 39.2 x 49.5 x 15 mm 07947-4630100
- Installer Attachment 40 mm 07LAD-PW50601

NOTE: Refer to the Exploded View as needed during this procedure.

1. Clean the disassembled parts with solvent, and dry them with compressed air.

NOTE: Do not wash the rubber parts with solvent.

2. Press a new intermediate shaft bearing (A) into the bearing support (B) using the 58 mm oil seal driver attachment (C), the 15 x 135L driver handle (D), and a press.

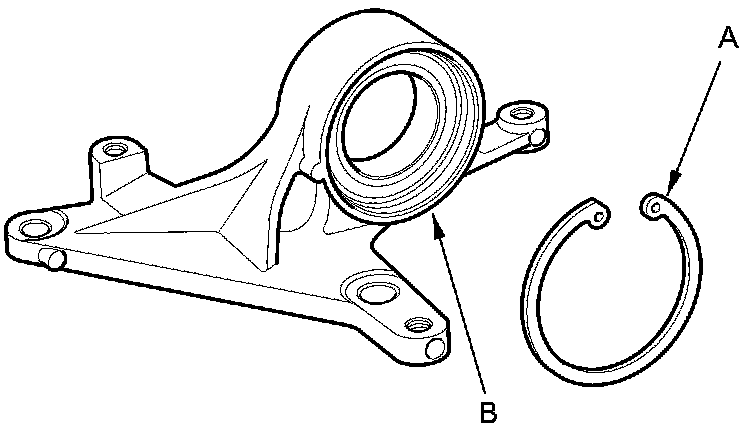

3. Install the internal snap ring (A) in the groove (B) of the bearing support.

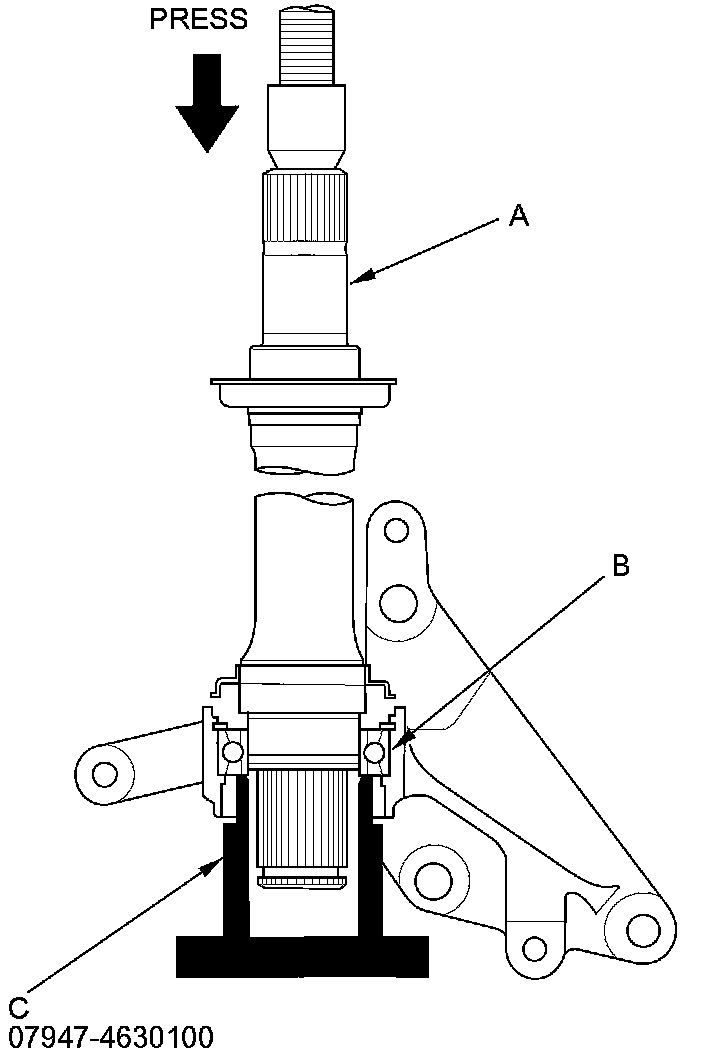

4. Press the intermediate shaft (A) into the shaft bearing (B) using the 39.2 x 49.5 x 15 mm fork seal driver (C), and a press.

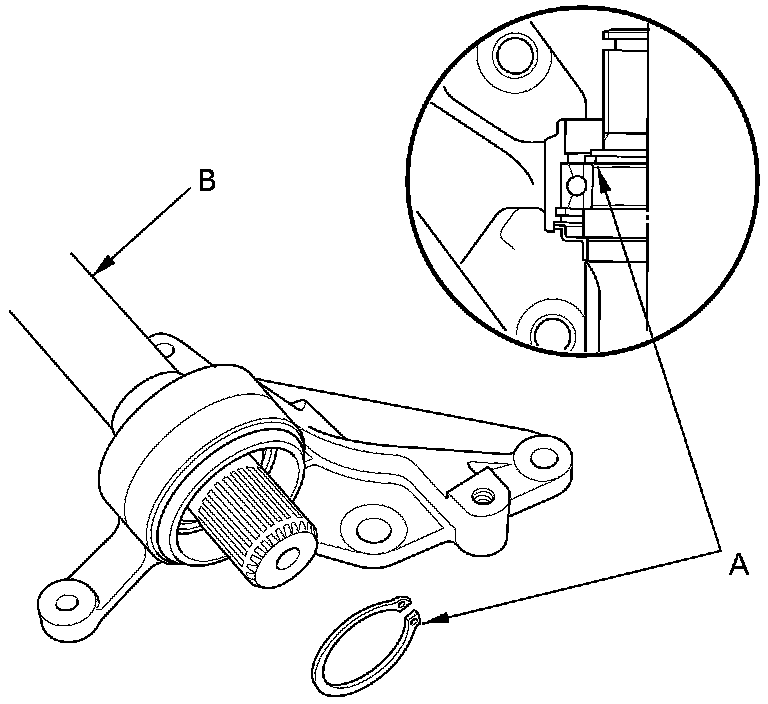

5. Install the external snap ring (A) in the groove of the intermediate shaft (B).

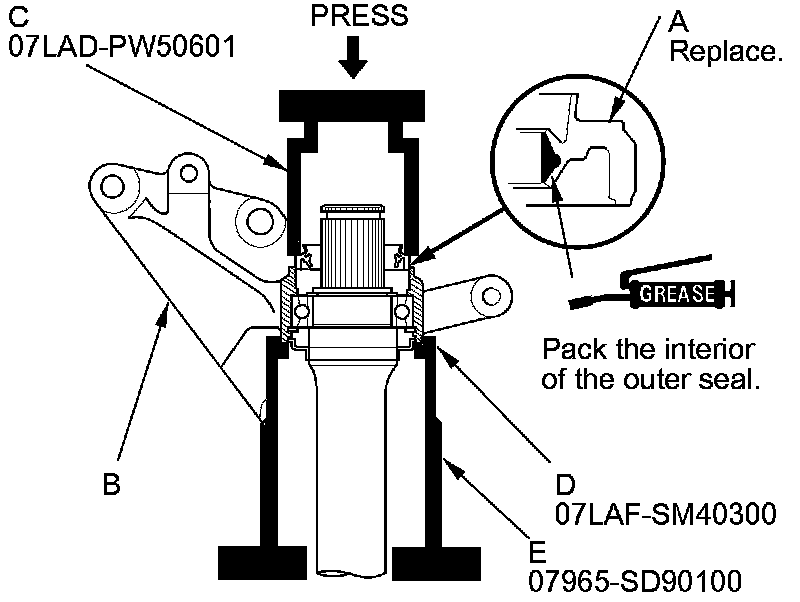

6. Install a new outer seal (A) into the bearing support (B) using the 40 x 50 mm attachment (C), the support base attachment (D), the support base (E), and a press. Press in the seal flush with the surface of the bearing support.

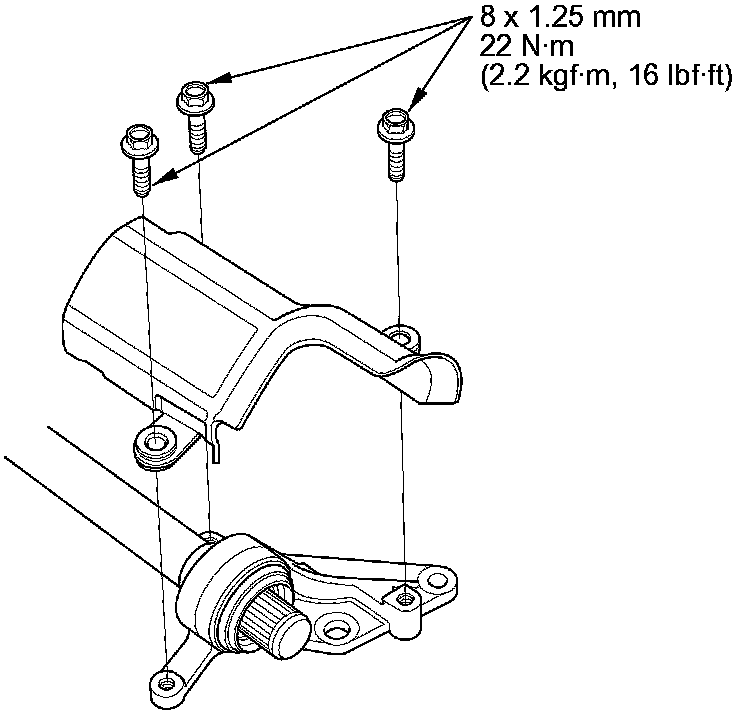

7. Install the heat shield onto the bearing support.
