Propeller Shaft Removal

Propeller Shaft Removal

1. Raise and support the vehicle Service and Repair.

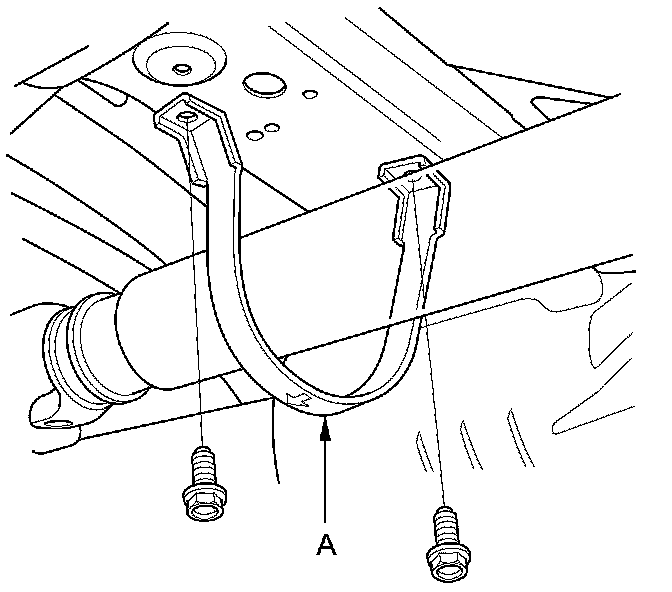

2. Remove the No. 1 propeller shaft protector (A).

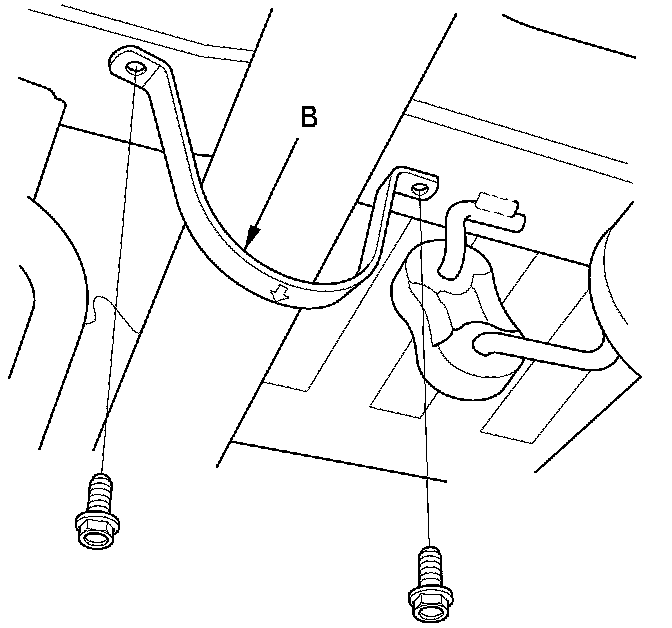

3. Remove the No. 2 propeller shaft protector (B).

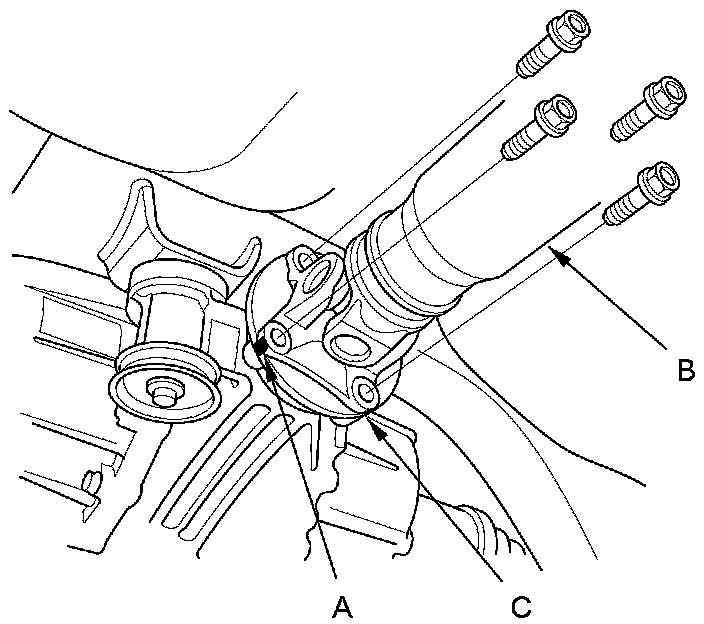

4. Make reference marks (A) across the No.1 propeller shaft (B) and the transfer companion flange (C).





5. Remove the flange bolts (D).

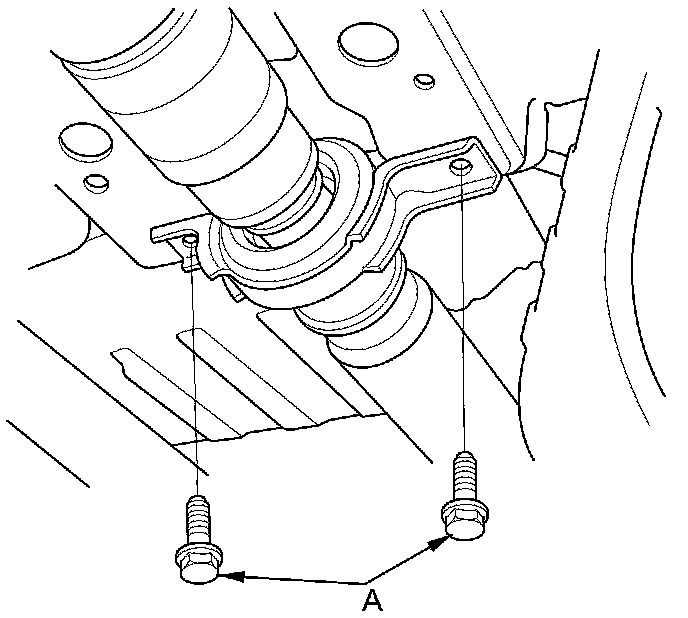

6. Remove the center support bearing mounting bolts (A).

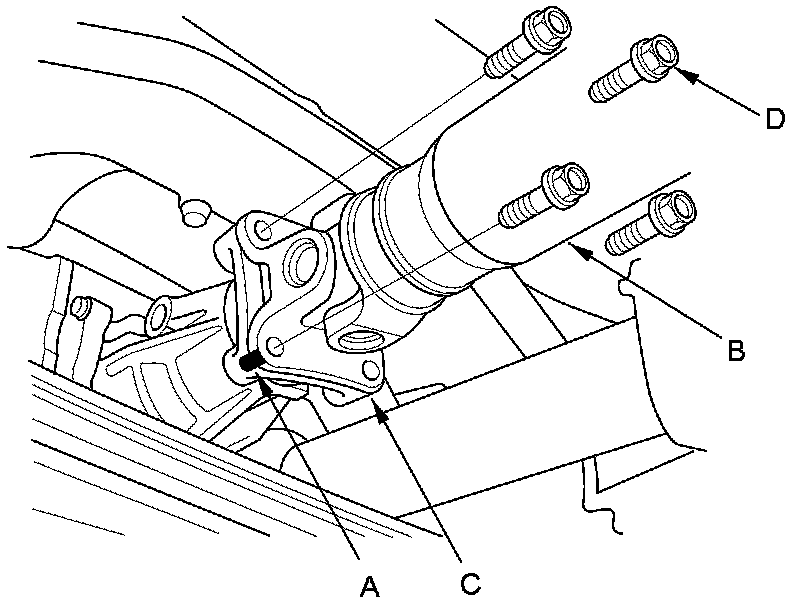

7. Make reference marks (A) across the No.2 propeller shaft (B) and rear differential companion flange (C).





8. Separate the propeller shaft from the rear differential, then remove the propeller shaft.
