Transfer Hypoid Drive Gear Bearing Replacement

Transfer Hypoid Drive Gear Bearing Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 42 x 47 mm 07746-0010300
- Installer Attachment 40 mm 07LAD-PW50601

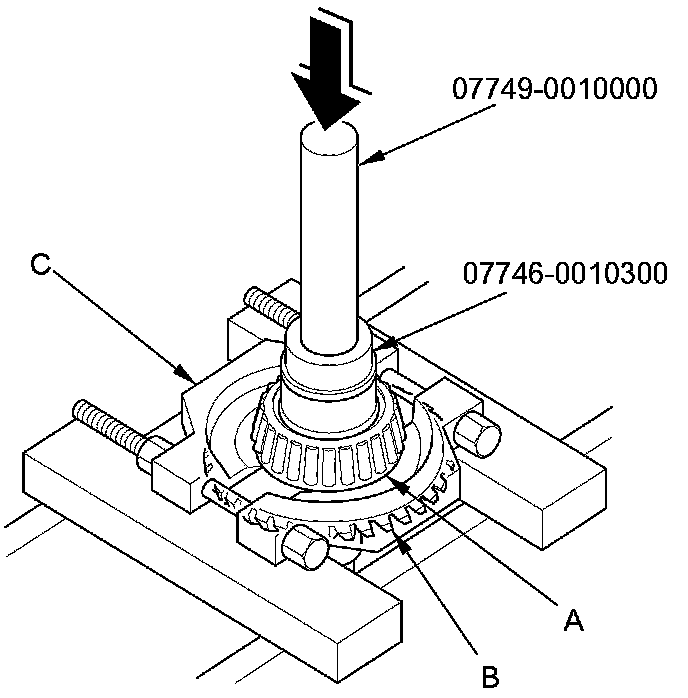

1. Remove the tapered roller bearing (A) from the transfer hypoid drive gear (B) using the driver handle (15 x 135L), bearing driver attachment (42 x 47 mm), a bearing separator (C) and a press.

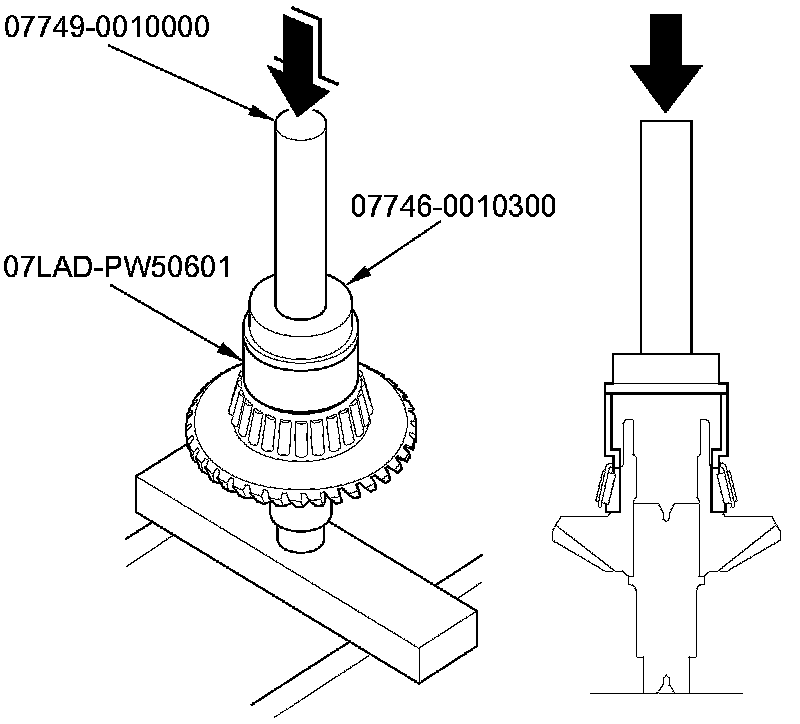

2. Install a new tapered bearing on the transfer hypoid drive gear using the driver handle (15 x 135L), bearing driver attachment (42 x 47 mm), installer attachment (40 mm), and the press.
