Wiper Arm: Adjustments

Wiper Arm/Nozzle Adjustment

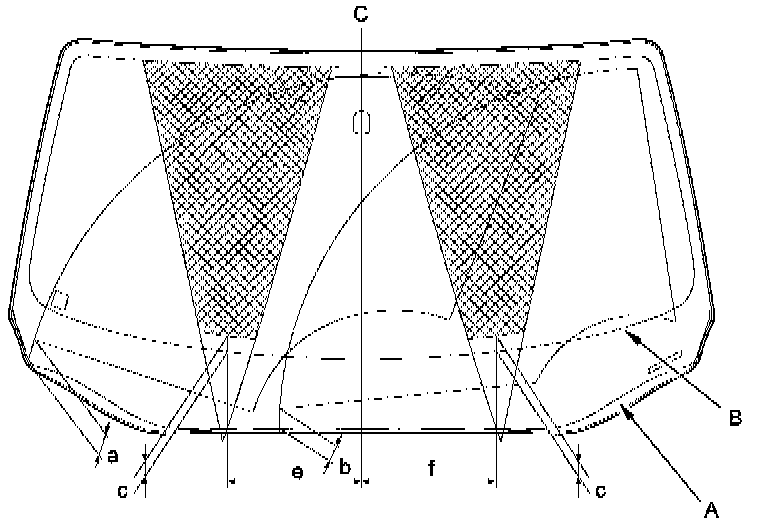

Windshield

Wiper Arms Park Position

1. Turn the wiper switch ON, and then OFF.

2. When the wiper arms stop at the park (automatic stop) position, confirm that they are at the standard position.

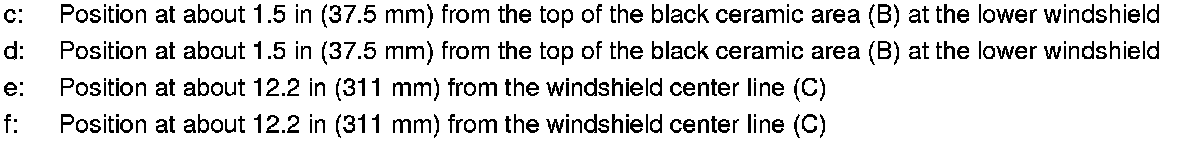

Washer Nozzle Positions

3. When you turn on the washer, confirm 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
