Rear Seat Belt

NOTE: Check the rear seat belts for damage, and replace them if necessary. Be careful not to damage them during removal and installation.

1. Slide the front seat forward fully.
2. Remove these items:
- Rear seat-backs
- Rear seat cushion

3. Remove these items:
- Rear bulkhead cover
- Rear side trim panel

4. Remove the side trim.

Rear Seat Belt - Coupe:

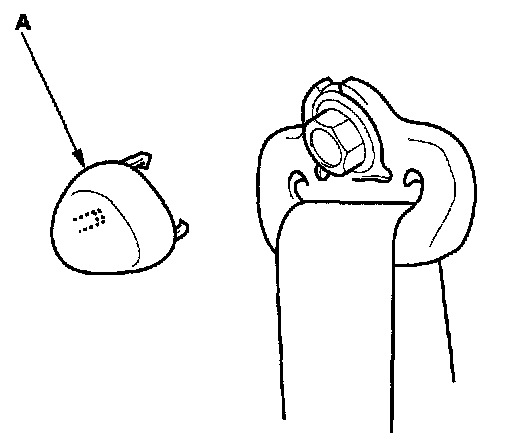

5. Remove the upper anchor cap (A).

Rear Seat Belt - Coupe:

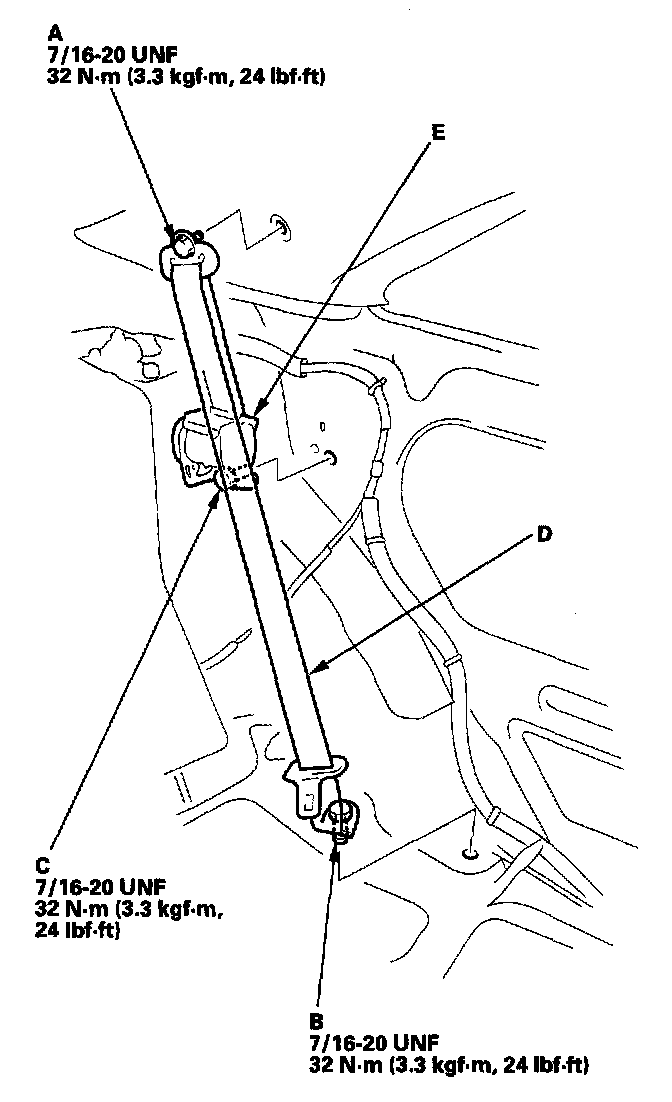

6. Remove the upper anchor bolt (A) and lower anchor bolt (B), and the retractor bolt (C). Remove the rear seat belt (D) and retractor (E).

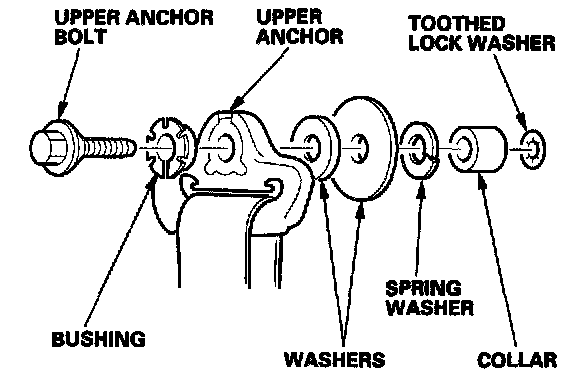

Upper Anchor Bolt - Coupe:

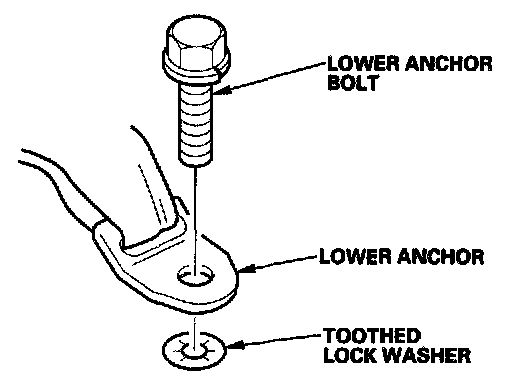

Lower Anchor Bolt - Coupe:

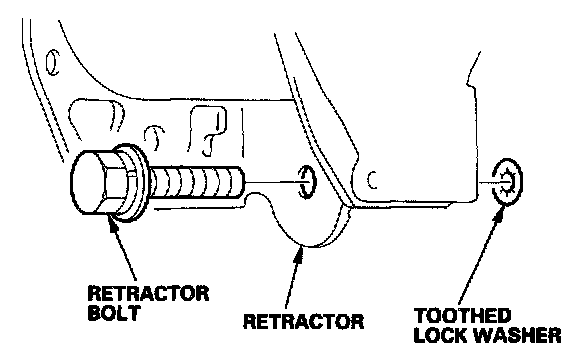

Retractor Bolt - Coupe:

7. Install the reverse order of removal, and note these items:
- Check that the retractor locking mechanism functions.
- Assemble the washers, collar and bushing on the upper anchor bolt as shown.
- Before installing the anchor bolts, make sure there are no twists or kinks in the rear seat belt.
