Parking Pin Switch Test/Replacement

Parking Pin Switch Replacement:

1. Remove the rear console.

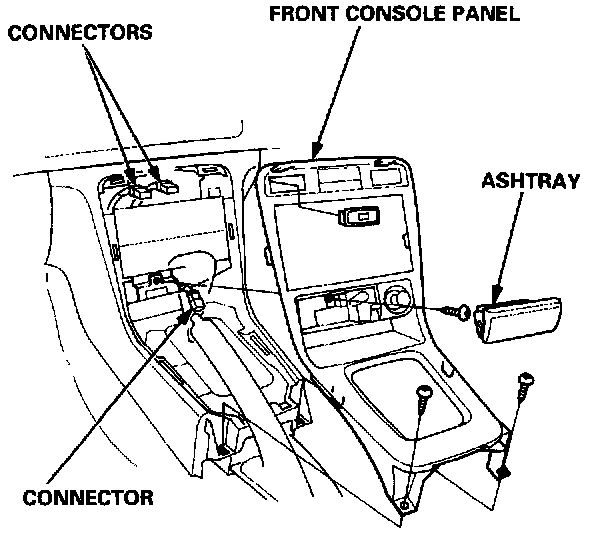

2. Remove the front console panel.
3. Remove the stereo radio/cassette player.
4. Remove the front console.
5. Disconnect the parking pin switch 2-P connector from the main wire harness.

Parking Pin Switch Replacement:

6. Remove the self-locking nut and parking pin switch.
