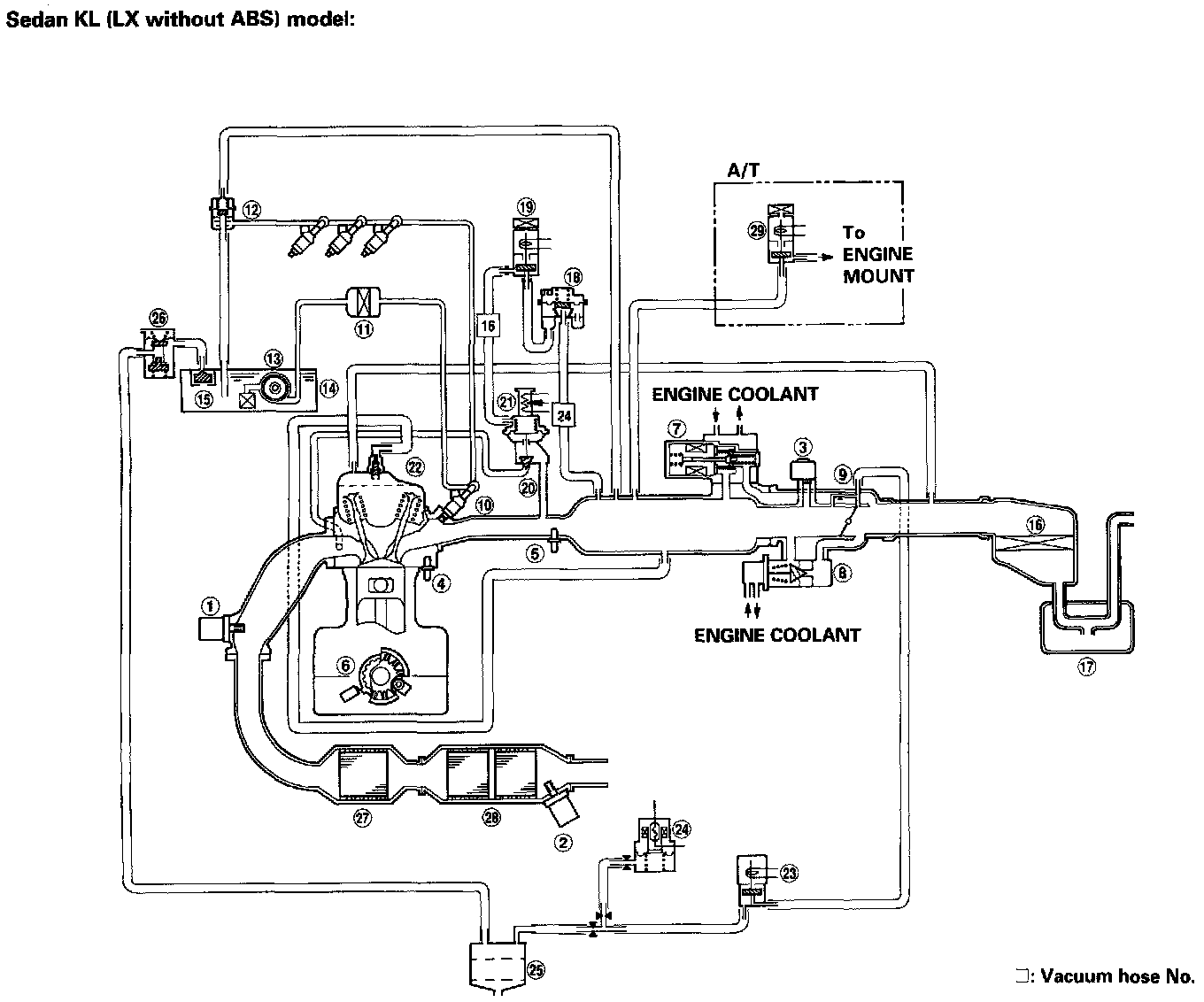

Models KL (LX Without ABS)

1. PRIMARY HEATED OXYGEN SENSOR (PRIMARY HO2S) (SENSOR 1)
2. SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S)(SENSOR 2)
3. MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
4. ENGINE COOLANT TEMPERATURE (ECT) SENSOR
5. INTAKE AIR TEMPERATURE (IAT) SENSOR
6. CRANKSHAFT POSITION/TOP DEAD CENTER (CKP/TDC) SENSOR
7. IDLE AIR CONTROL (IAC) VALVE
8. FAST IDLE THERMO VALVE
9. THROTTLE BODY (TB)
10. FUEL INJECTOR
11. FUEL FILTER
12. FUEL PRESSURE REGULATOR
13. FUEL PUMP (FP)
14. FUEL TANK
15. FUEL TANK EVAPORATIVE EMISSION (EVAP) VALVE
16. AIR CLEANER
17. RESONATOR
18. EXHAUST GAS RECIRCULATION (EGR) VACUUM CONTROL VALVE
19. EXHAUST GAS RECIRCULATION (EGR) CONTROL SOLENOID VALVE
20. EXHAUST GAS RECIRCULATION (EGR) VALVE
21. EXHAUST GAS RECIRCULATION (EGR) VALVE LIFT SENSOR
22. POSITIVE CRANKCASE VENTILATION (PCV) VALVE
23. EVAPORATIVE EMISSION (EVAP) PURGE CONTROL SOLENOID VALVE
24. EVAPORATIVE EMISSION (EVAP) PURGE FLOW SWITCH
25. EVAPORATIVE EMISSION (EVAP) CONTROL CANISTER
26. EVAPORATIVE EMISSION (EVAP) TWO WAY VALVE
27. WARM-UP THREE WAY CATALYTIC CONVERTER (WU-TWC)
28. THREE WAY CATALYTIC CONVERTER (TWC)
29. ENGINE MOUNT CONTROL SOLENOID VALVE
