System Diagram
>>

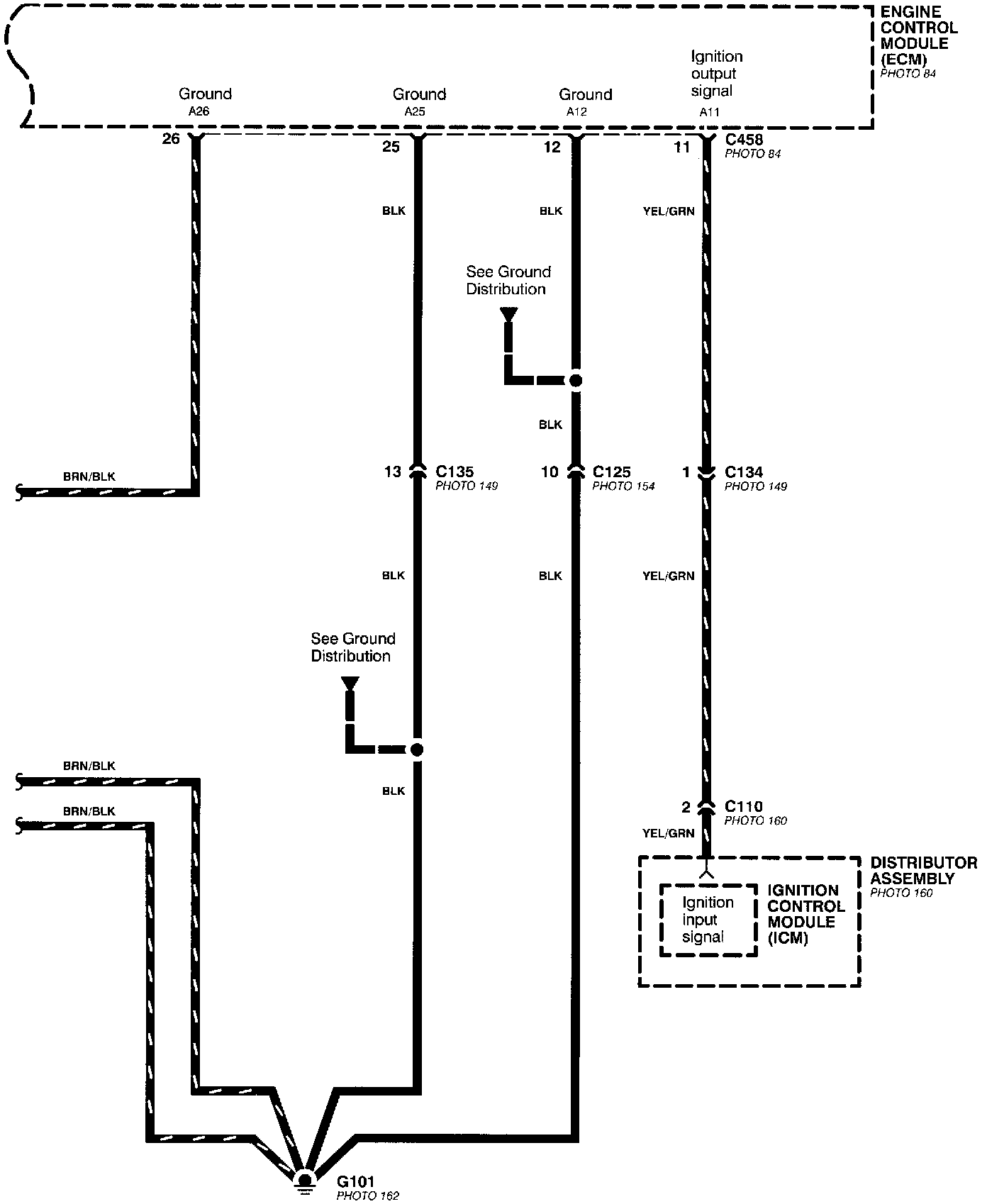

Ignition Control System
Ignition Control System
Programmed Fuel Injection System (PGM-FI) - Engine Data Sensors (Part 1 Of 2):
Programmed Fuel Injection System (PGM-FI) - Engine Data Sensors (Part 2 Of 2):
