Push Rod: Testing and Inspection

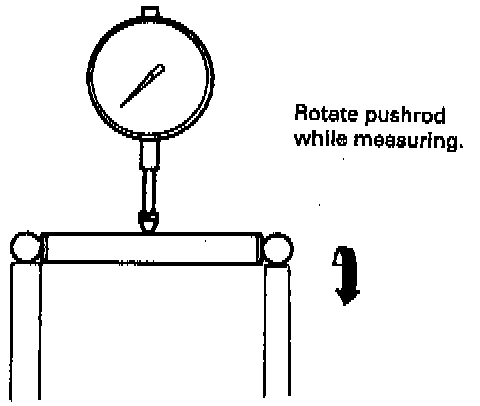

1. Inspect the pushrod runout.
^ Support balls at both ends with V-blocks.
^ Measure while rotating the pushrod.
- Pushrod Runout: 0.02 mm (0.0008 inch)
2. Check the balls at each end of the pushrod for pitting, scoring or wear.
