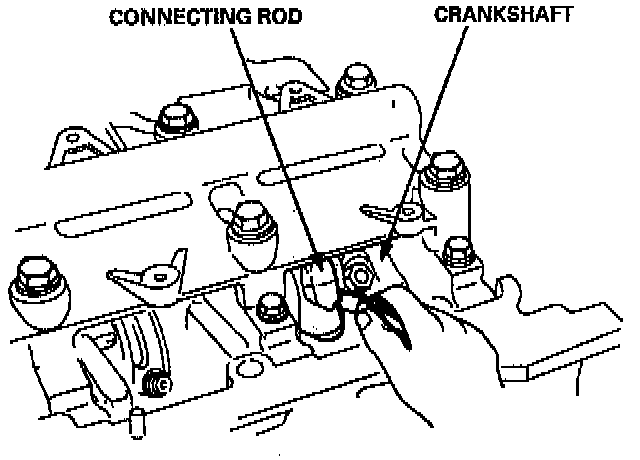

End Play

^ Standard (New): 0.15-0.30 mm (0.006-0.012 inch)
^ Service Limit: 0.40 mm (0.016 inch)
- If out-of-tolerance, install a new connecting rod.
- If still out-of-tolerance, replace the crankshaft.
