Crankshaft Main Bearing: Application and ID

CAUTION: If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

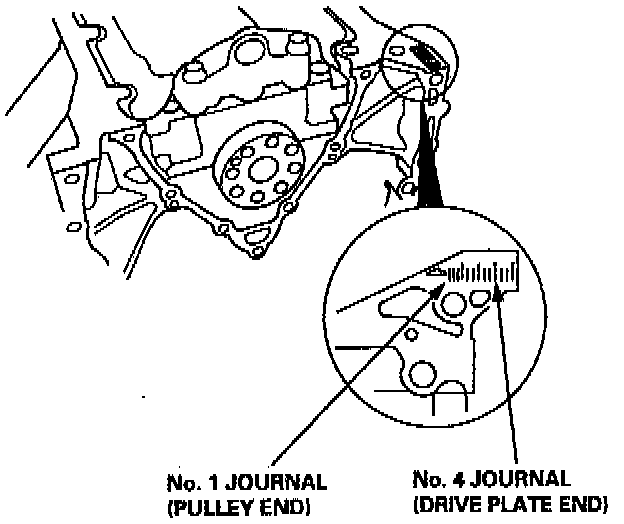

Crankshaft Bore Code Location
Letters or Bars have been stamped on the end of the block as a code for the size of each of the 4 main journal bores.
Use them, and the numbers stamped on the crankshaft (codes for main journal size), to choose the correct bearings.

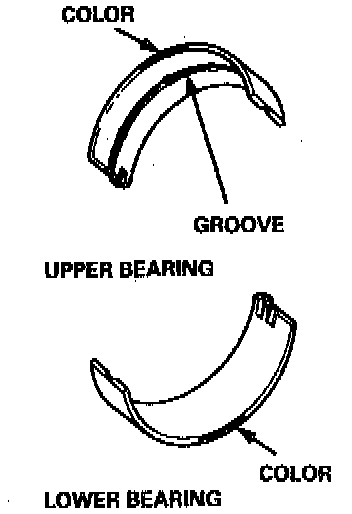

Bearing Design

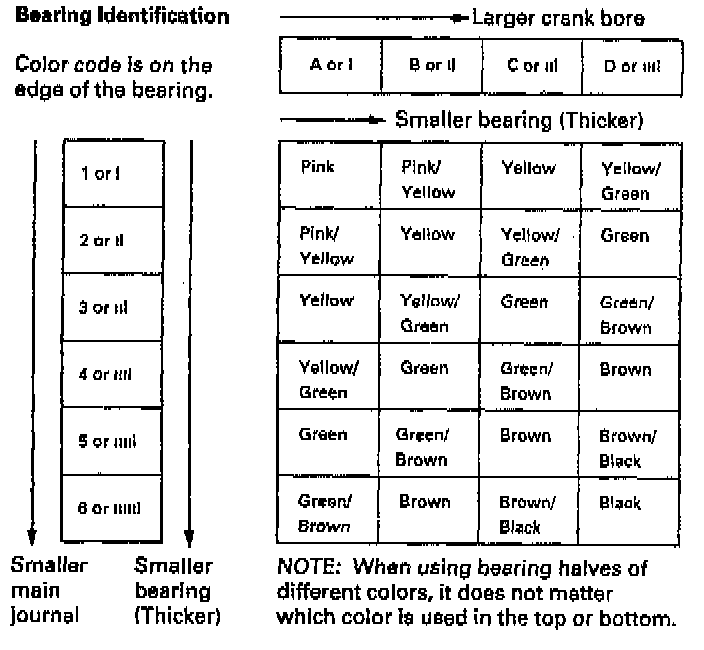

Bearing Identification

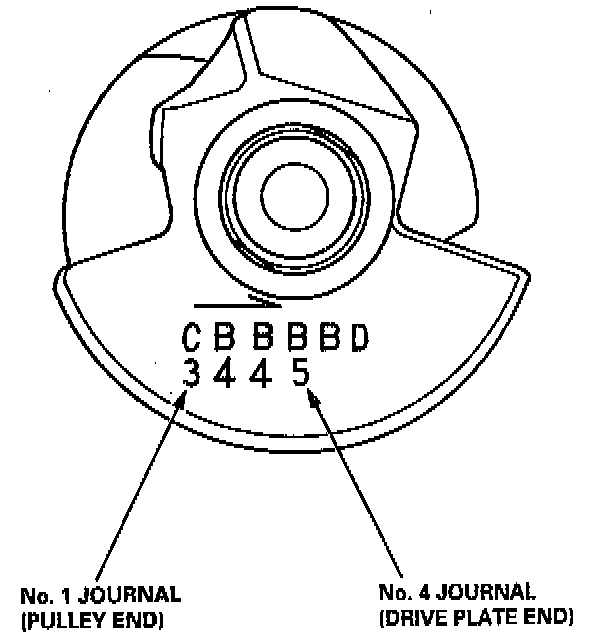

Main Journal Code Locations
