Home >> Honda >> 1996 >> Accord Sedan V6-2.7L SOHC (24 Valve) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Diagrams

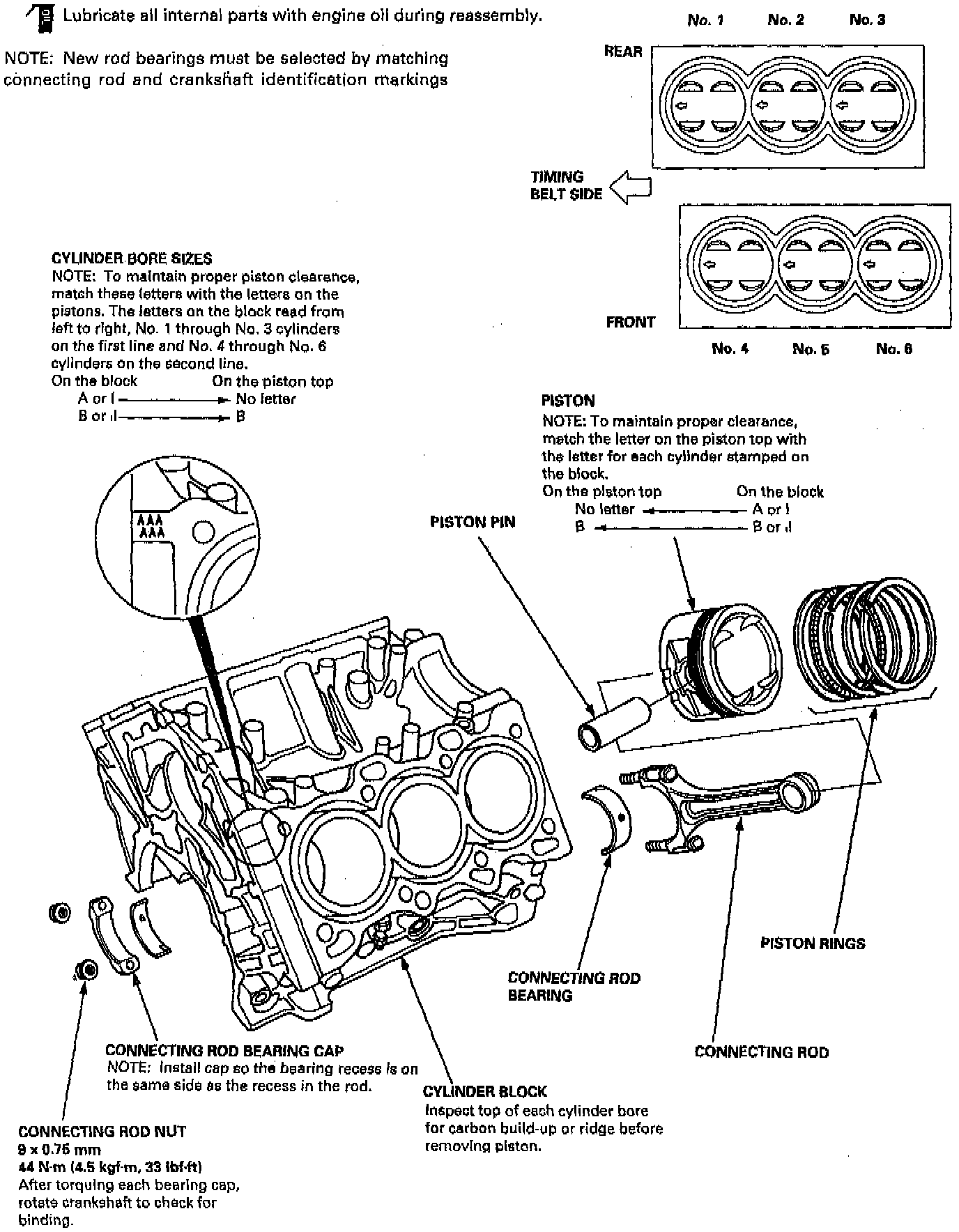

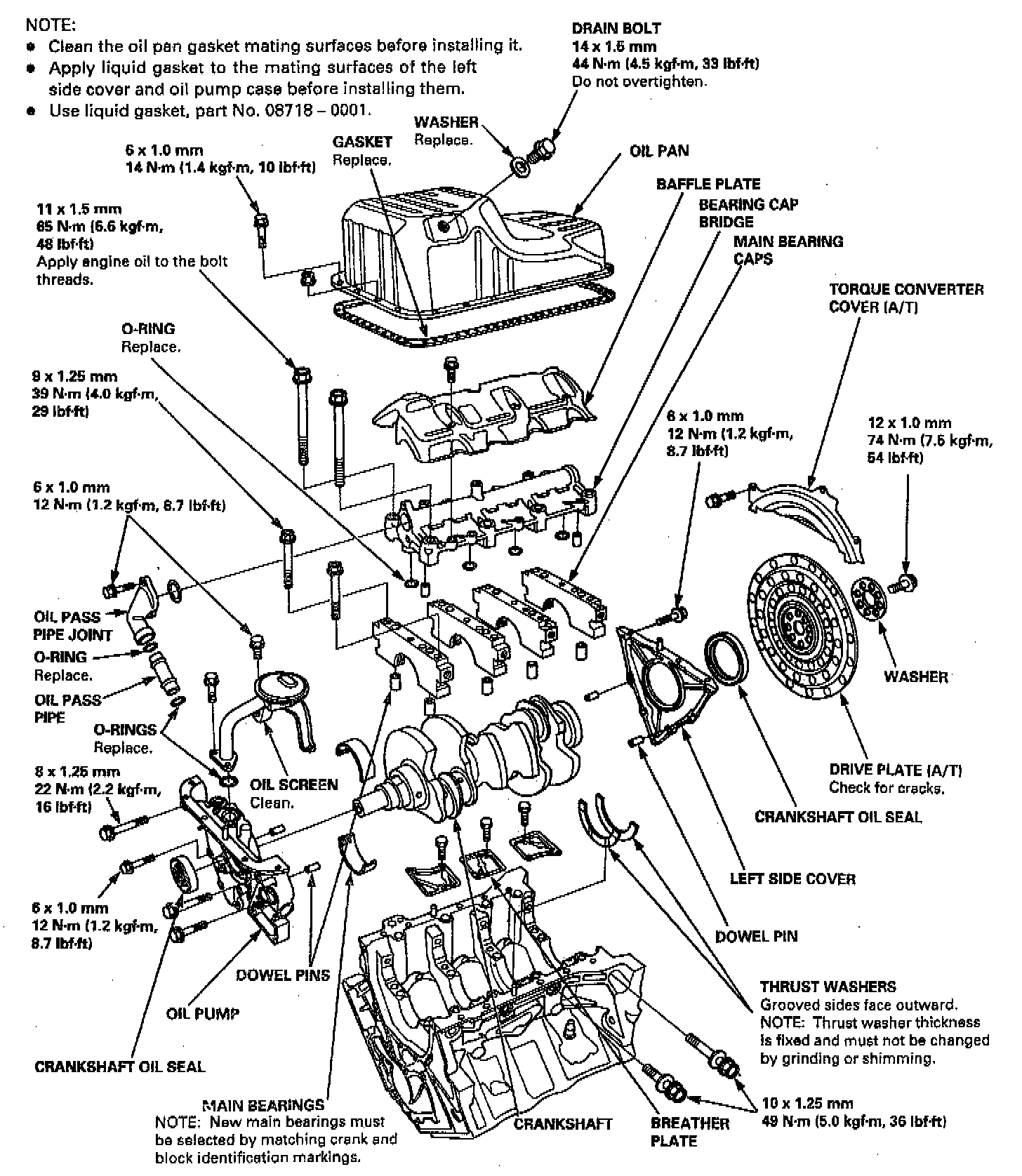

Cylinder Block Assembly: Diagrams
